Incremental Rotary Shaft Encoders ！

Product Description

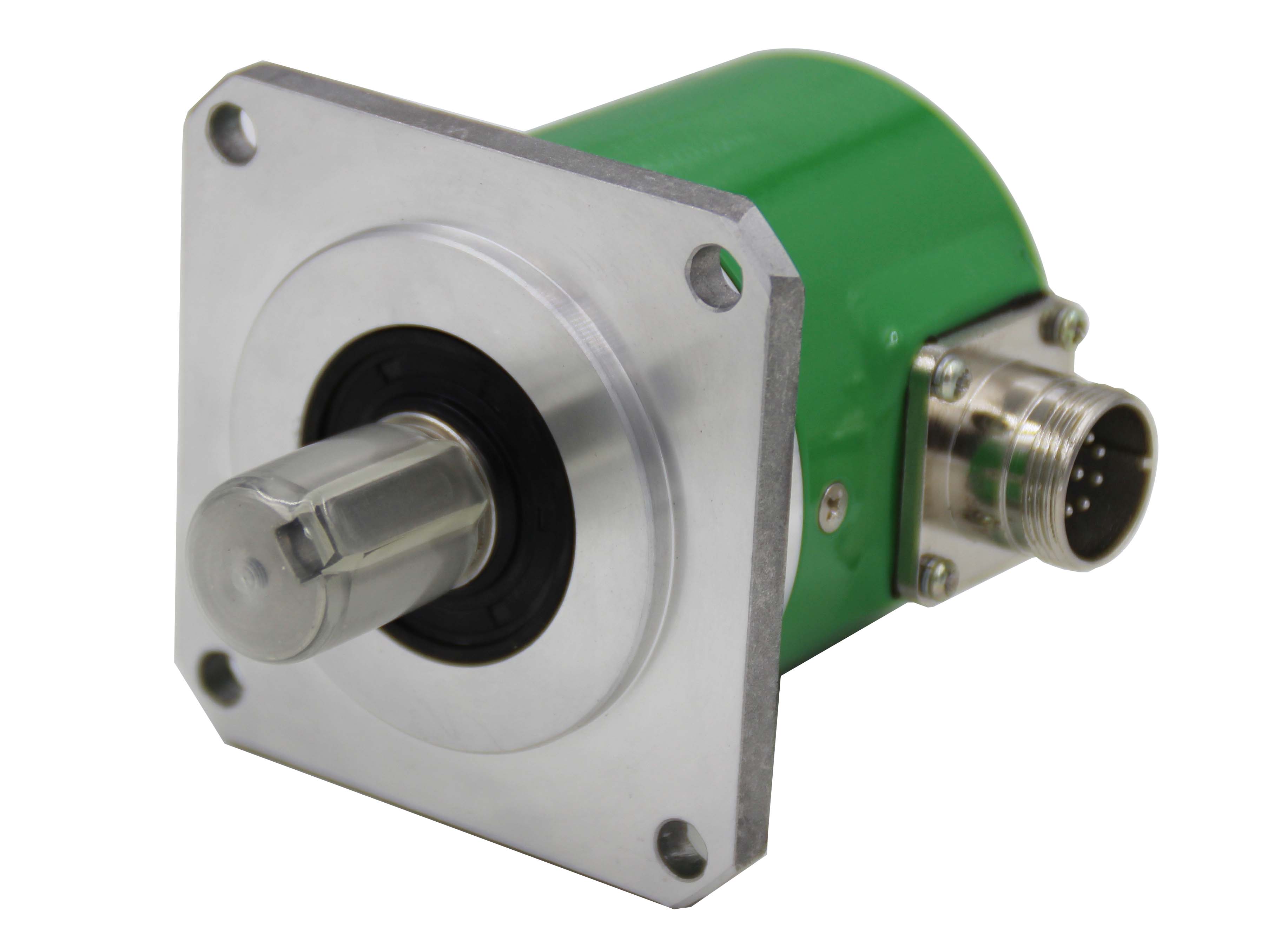

INCREMENTAL ROTARY ENCODER

Incremental shaft encoders also known as Incremental Rotary Shaft Encoders are ideal for monitoring sensing a rotating shaft, or even linear position sensing when used in conjunction with ball screws etc, rollers. When integrated into a control system, they provide speed, position, acceleration & direction feedback data to the system. Incremental encoders produce a series of pulses directly proportional to movement of its shaft.

Features:
* Good reliability, long life, anti-jamming performance.
* Sealing stainless steel shaft has a higher stability and protection.
* Aluminum flange shell is more solid and anti-impact.
* Outlet end use waterproof metal interface protection, infold sleeve design, no loose.

* Applicability to a wide variety of mechanical and industrial control.

Baumer Encoder GI341 Substitute Low Cost Rotary Encoder
SPECIFICATION External Diameter 58mm
Shaft Diameter 6-15mm
Slew Speed 6000r/min
Shaft Load ≤30N
Operating Temperature -20 °C(-40 °C)- +85°C
Protection Class IP63
Termination Side Entry Cable/Rear Entry Plug
Supply Voltage DC5V/8V-26V/12V-30V/12V
Output Model Voltage/Push-pull/Open collector/Line driver
Frequency Response 0-100kHz
Current Requirement ≤60mA
Output Pulse No. 100-6000
Index Length 1T
Output Phase A,B,Z/A,-A,B,-B,Z,-Z

Company Information

Roundss has near 10 years experience in the design, manufacturing, sales and marketing of precision optical and magnetic encoders. Encoders and encoder systems are our only product. Since we specialize in the manufacturing of high quality precision encoders, we offer the best solutions to your most demanding requirements.
