LINEAR SCALE LINEAR ENCODER！
Changchun Rongde Optics Co.,Ltd. Release time：2015-03-05 Browse：1259

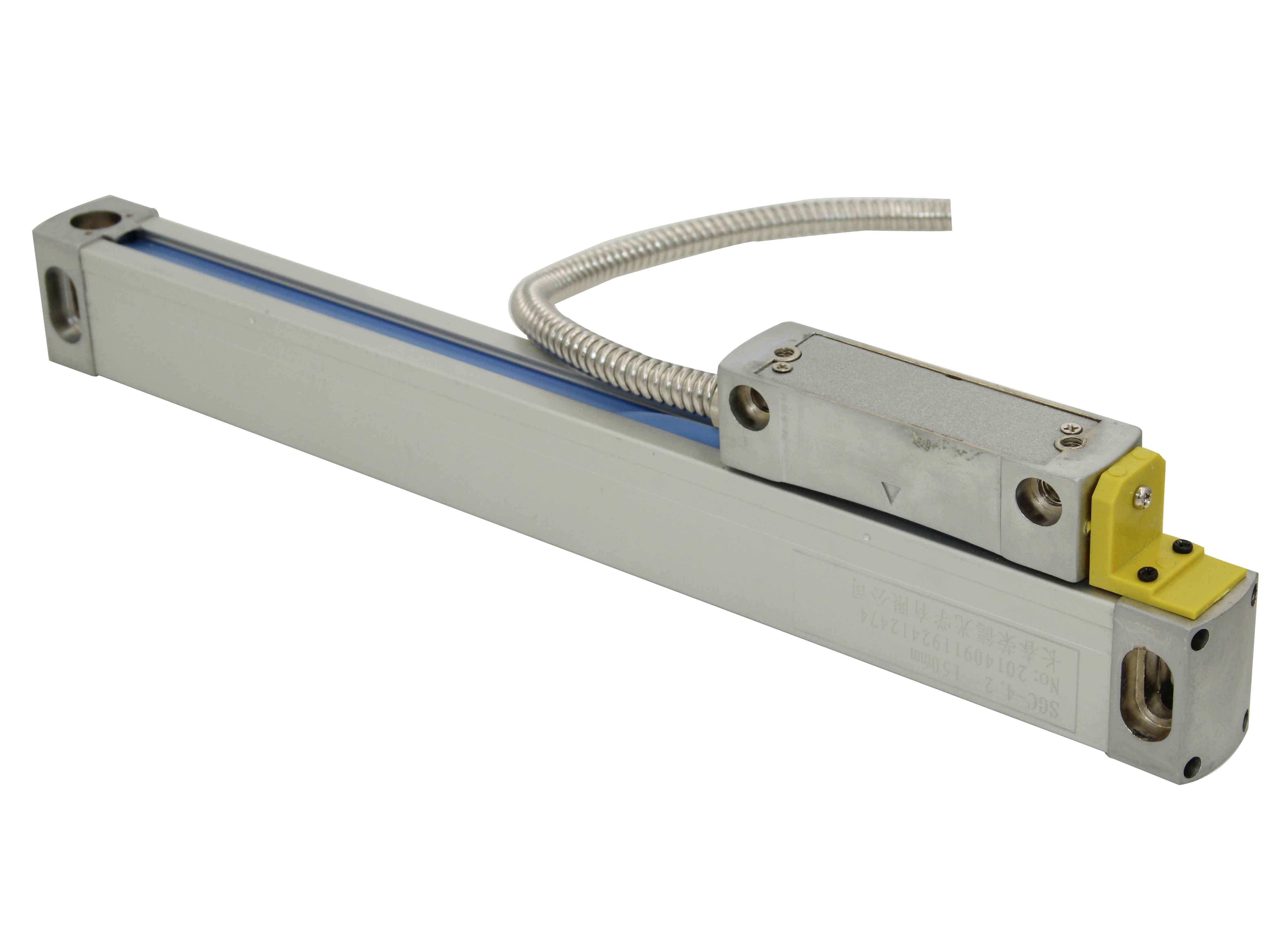

LINEAR SCALE LINEAR ENCODER
Roundss has 10 years experience in the design, manufacturing, sales and marketing of precision optical and magnetic encoders. Encoders and encoder systems are our only product. Since we specialize in the manufacturing of high quality precision encoders, we offer the best solutions to your most demanding requirements.
2.One index signal or mutiple index signals
3.Output Model: Voltage or Line Driver
For voltage output:5V/24V are optional
For Line Driver output: 7272B/AM26LS31 are optional
4.Cable length linear scale
5.The measuring range.
Low Cost TTL Output 0.5um Linear Scale Price from Manufacturer
| SPECIFICATION | Grating Pitch | 0.02mm(50 line pair/min) 0.04mm(25 line pair/min) |
| Accuracy | ±0.008mm/±0.01mm ±0.15mm(20°C 1000mm) | |
| Zero Pulse | zero reference at 50mm interval or any position among full-scale range | |
| Measuring Range | Optional within 30 meters | |
| Operating Temperature | -20°C(-40°C)-85°C | |
| Storage Temperature | -40°C-55°C | |
| Frequency Response | 25m/min, 60m/min | |
| Output Signal | TTL Square Ware/ HTL Square Ware(12V/15V/24V)RS422 Signal |
