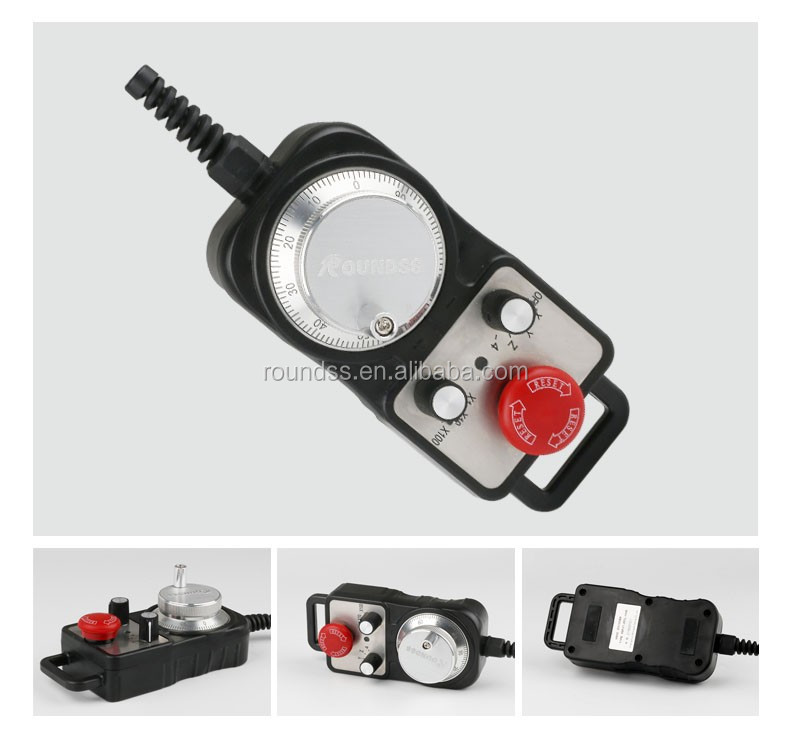

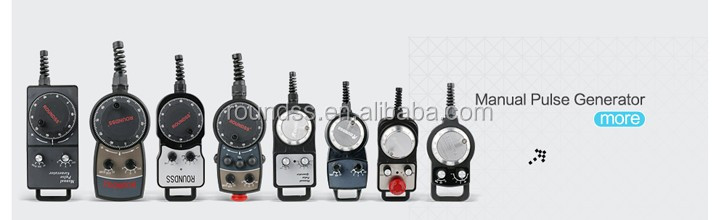

Intelligent Pendant MPG/Manual Pulse Generator ！
Changchun Rongde Optics Co.,Ltd. Release time：2016/3/30 Browse：887Quick Details
| Place of Origin: |
Jilin, China (Mainland) |
Brand Name: |
Roundss |
Model Number: |
RDF Manual Pulse Generator |
| Usage: |
Position Sensor |
Theory: |
Optical Sensor |
Output: |
Digital Sensor |
| Dimension: |
130mm*70mm*33.5mm |
Max Speed: |
600r/min Manual pulse generator |
Normal rotational speed: |
≤200r/min |
| Optional axis: |
X Y Z 4 (2/3/4/5/6 Axes Optional) |
Magnification: |
X1 X10 X100 |
Frequency Response: |
0-50kHz |
| Isolation Resistance: |
≥20MΩ |
Output Phase: |
A,B |
Switch for Axes: |
O/X/Y/Z/2/3/4/6 |
| Pulse No.: |
25,100 |
Packaging & Delivery
| Packaging Details: | Manual pulse generator Packaging: Carton |
| Delivery Detail: | Delivery within a week after receipt of payment |
Manual pulse generators(handwheel/mpg) are typically rotating knobs that generate electrical pulses. They are normally associated with computer numerically controlled (CNC) machinery or other devices involving positioning. When the pulse generator sends an electrical pulse to an equipment controller, the controller then moves a piece of equipment a predetermined distance with every pulse.
Optical encoders use a light source and a photo detector array to read the optical pattern of a plastic or glass disc and translate the pattern into a position data code.
| SPECIFICATION | Output Pulse | 100P/R | 25P/R | |
| Output Model | Voltage | Line Driver | ||
| Supply Voltage | DC5V-15V/10-30V | DC5V-0.25V | ||
| Current Requirement | ≤60mA | ≤150mA | ||
| Signal Level | High | ≥Vcc-1V | ≥2.5V | |
| Low | ≤0.5V | ≤0.5V | ||
| Rise/Fall time | ≤1us | ≤0.1us | ||
| Output Phase | A,B,-A,-B | |||
| Frequency Response | ≤30kHz | |||
| Risolation resistance | ≥20MΩ | |||
| Normal rotational speed | ≤200r/min | |||
| Slew speed | 600r/min | |||
| Operating temperature | -10-+60°C | |||
| Storage Temperature | -20-+70°C | |||
| Dimension |
130mm×70mm×33.5mm | |||
| Switch for resolution | ×1,×10,×100 | |||
| Switch for Axes | O/X/Y/Z/2/3/4/6 | |||
Mechanical Dimensions Manual Pulse Generator Handwheel MPG 100 PPR
Pre-sales Service
1.The handwheel MPG has 18 Month warranty
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
