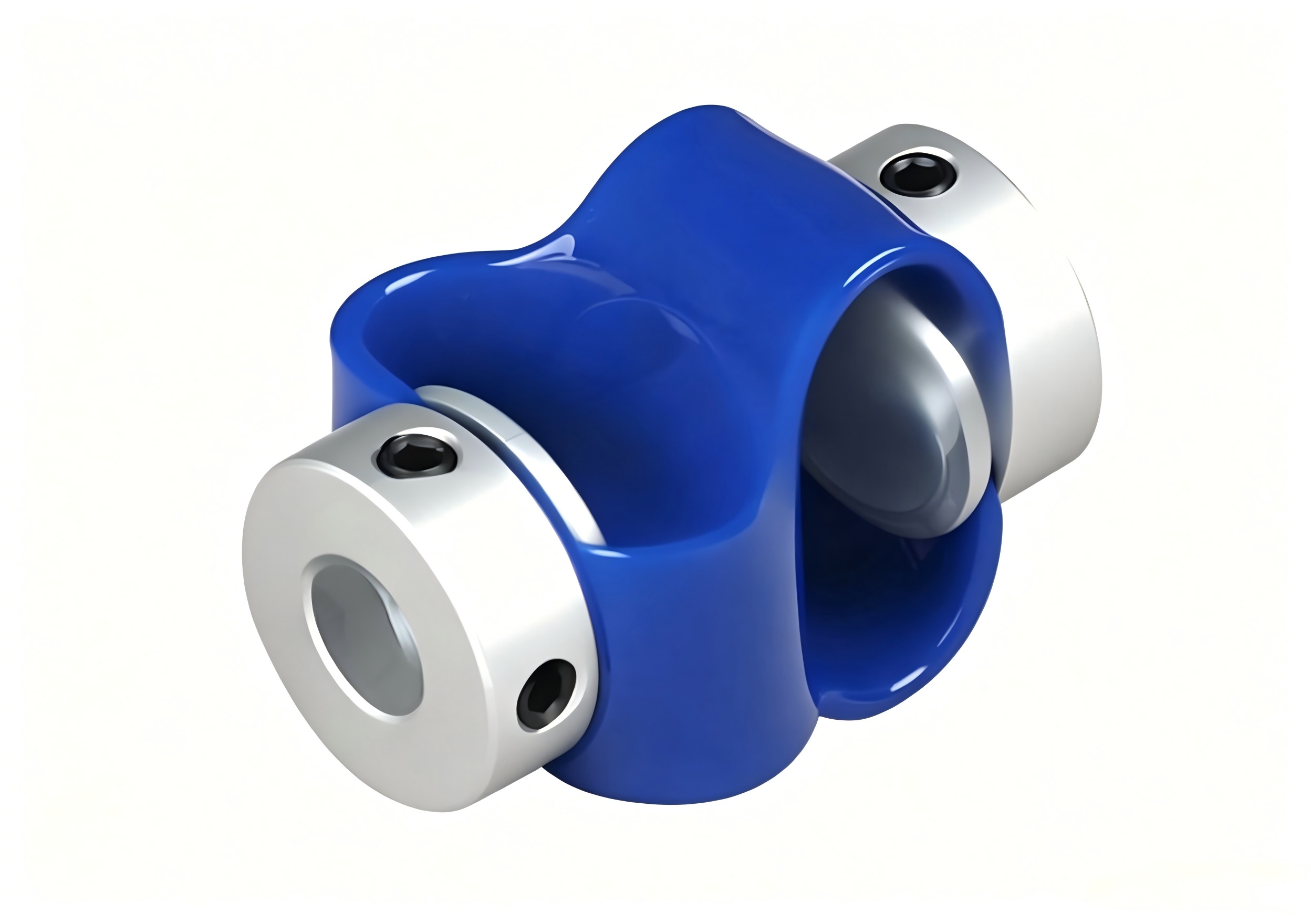

Current position ：Home > Products > RD1-C Jaw Clamp Coupling

Flexible Coupling

Coupling is a mechanical part, used to connect two different shaft (drive shaft and the driven shaft) to rotate together to transmit torque. In the high-speed heavy-duty power transmission, some couplings also have the functions of cushioning, vibration and improving the dynamic performance of shafting. Composed by two coupling halves, respectively, with the drive shaft and the driven shaft coupling. Most of the general power machine by means of couplings to connect with the machine.

[Manual Download]


Picture	Model	Type	Outer Dia.(mm)	Length(mm)	Standard Bore(mm)	PDF Download

	RD8-S	Parallel Screw Coupling	12-63	18.5-90	4-18

	RD8-C	Parallel Clamp Coupling	12-63	18.5-90	4-18

	RD7-S	Odham Screw Coupling	16-50	18-58	3-20

	RD7-C	Odham Clamp Coupling	16-50	18-58	3-20

	RD6-B	Glass Fibre Coupling	13-25	22-32	4-10

	RD6-A	Plastic Helical Coupling	13-25	22-32	4-10

	RD5-AD	Metal Plate Spring Coupling	42	39	15*15

	RD4-C	Helical Clamp Coupling	16-51	22-51	3-19

	RD4-S	Helical Screw Coupling	16-51	22-50.8	3-19

	RD3-E	Expansion Bushing Bellows Coupling	40-82	55-88	10-38

	RD3-B	Double-wall Bellows Clamp Coupling	17-99	31.5-100	3-54

	RD3-A	Single-wall Bellows Clamp Coupling	16-32	26.5-42	4-14

	RD2-CD	Expansion Bushing Double Diaphragm Clamp Coupling	70-100	78-87	19-60

	RD2-BD	Double Diaphragm Clamp Coupling	26-82	32.3-98	4-45

	RD2-BS	Single Diaphragm Clamp Coupling	26-82	23.15--68	4-45

	RD2-AD	Double Diaphragm Clamp Coupling	34-82	37.8-98	4-32

	RD2-AS	Single Diaphragm Clamp Coupling	34-82	27.3-68	4-32

	RD1-S	Spider Set Screw Flexible Coupling	20-105	30-140	3-60

	RD1-C	Spider Clamp Flexible Coupling	20-105	30-140	3-60
