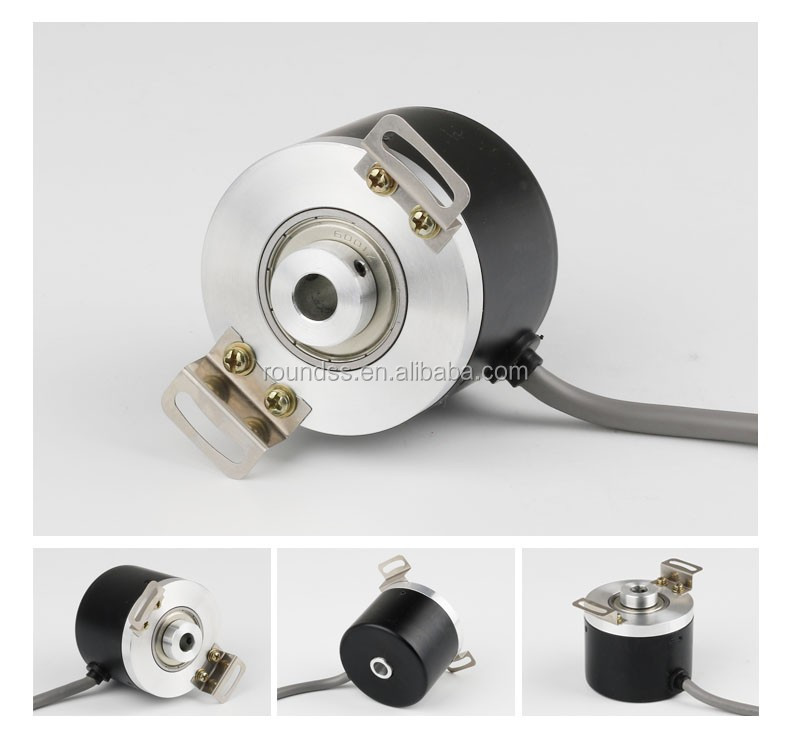

ROTRY INCREMENTAL ENCODER 50MM HOUSING
Incremental shaft encoders also known as Incremental Rotary Shaft Encoders are ideal for monitoring sensing a rotating shaft, or even linear position sensing when used in conjunction with ball screws etc, rollers. When integrated into a control system, they provide speed, position, acceleration & direction feedback data to the system. Incremental encoders produce a series of pulses directly proportional to movement of its shaft.
Features:
* Good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.
Product Description
1.Encoder R50T Series are widely applied in industrial control .
2.Compact design,high precison.
3.Resoltions up to 6000.
4.Stainless steel shaft ensures high stability and protection ability.
5.Suit more application enviroments.
6. Low price and high quality
7. Through Hollow shaft rotary optical encoder
|
MECHANICAL SPECIFICATIONS | |
|
External Diameter |
50mm |
|
Shaft Diameter |
8/10mm |
|
Slew Speed |
6000r/min |
|
Shaft Load |
≤10N |
|
Operating Temperature |
-20 °C(-40 °C)- +85°C |
|
Protection Class |
IP54 |
|
Termination |
G/E |
|
ELECTRICAL SPECIFICATIONS | |
|
Supply Voltage |
DC5V-DC26V/10V-30V |
|
Output Model |
E/C/F/L |
|
Frequency Response |
0-100kHz |
|
Current Requirement |
≤60mA |
|
Output Pulse No. |
10-6000 |
|
Index Length |
1T |
|
Output Phase |
A,B,Z/A,-A,B,-B,Z,-Z |
|
TERMINATION | |||
|
G Side Entry Cable |
E Rear Entry Cable |
C Side Entry Plug |
R Rear Entry Plug |
|
OUTPUT MODEL | |||
|
E Voltage |
F Complementary |
C Open Collector |
L Line driver or according to user requirement |
| Model defined: | |||||||||
| R | 50 |
T |
6 |
G |
05 | L |
6000 |
B |
M |
|
E:Economical R:Universal D:Reinforced H:High Precision Reinforced RDD:Magnetoelectric |
Body Diameter Ø 50mm |
S:shaft H:End Hollow Shaft(Blind Hole) T:Through Hollow Shaft(ViaHole) |
Shaft Diameter 8/10mm |
G:Side Entry Cable E:Rear Entry Cable C:Side Entry Plug R:Rear Entry Plug (G/E) |
Supply Voltage (DC5V-DC26V/10V-30V)
|
Output Model: E:Voltage F:Complementary C:Open Collector L:Line driver or according to user requirement |
Output Pulse No. (10-6000) |
Output Phase B=A,B signals |
Index Signal |

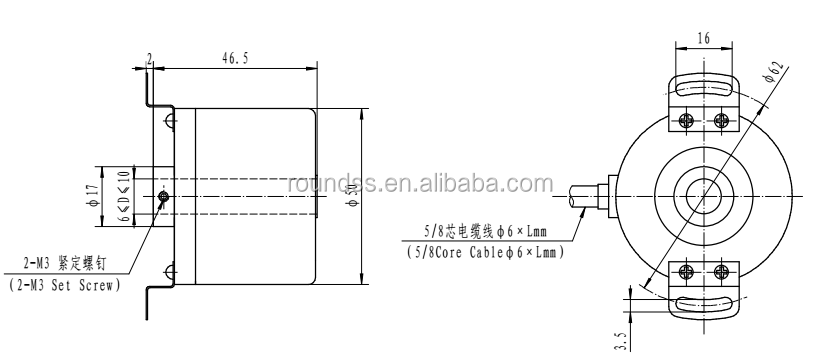

Mechanical Dimensions
Pre-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
Previous：Absolute rotary encoder mechanical installation Next：Absolote encome resolution
