Product Description
OPTICAL ROTARY HOLLOW SHAFT ABSOLUTE ENCODER
1.Standard single turn absolute rotary encoder with good resistance to mechanical damage capability is usually used in industry environment,can withstand high axial and radial load. 2. A variety of flange and output model is optional, adjustable reset function, timely correcting operation.
l Absolute Encoder Ultra-thin:34mm.
l Absolute Encoder Resolution:10-18 bits.
l Multiple Output interfaces absolute encoder.
l IP64.Be able to operate in harsh environment.
Rotary Absolute Encoder Optical
| SPECIFICATION | External Diameter | 50mm | ||
| Shaft Diameter | 8mm | |||
| Max Speed | 300r/min | |||
| Shaft Load | ≤20N | |||
| Operating Temperature | -20 °C-+65°C/-40°C- +65°C | |||
| Protection Class | IP64 | |||
| Termination | Side Entry Cable/ Rear Entry Cable | |||
| Shock | 20g | |||
| Vibration Resistance | 2.5g | |||
| Radial cable | 1m standard | |||
| Supply Voltage | DC5V/DC9-30V | |||
| Output Code | Binary Code/Gray Code | |||
| Interface | RS485/RS422/RS232/SSI/CAN/Parallel | |||
| Refresh Rate | 50-1000kHz | |||
| Baud Rate | 4800b/s-115200b/s | |||
| Current Requirement | ≤180mA | |||
| Resolution in Bits | 10-18 | |||
| Protocol | Timing TXD/Bus TXD | |||
| Measuring Range | 0°-360° | |||

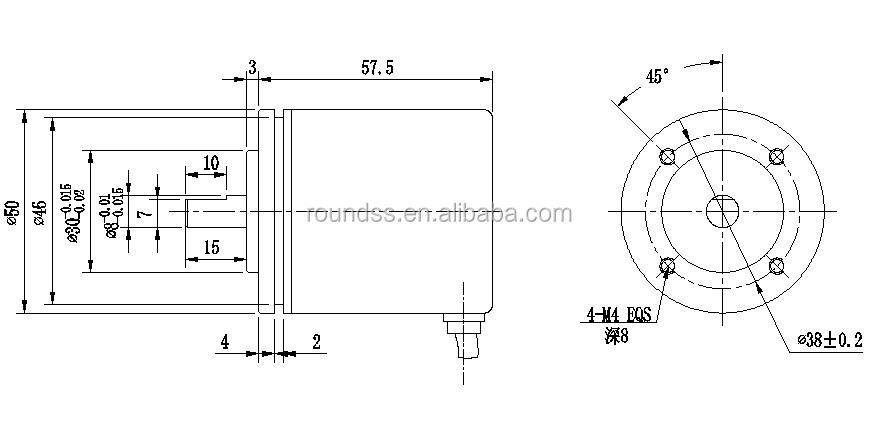

Mechanical Drawings Hollow Shaft Rotary Absolute Encoder Optical Encoder
Pre-sales Service
1.The rotary absolute encoder can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
