Product Description

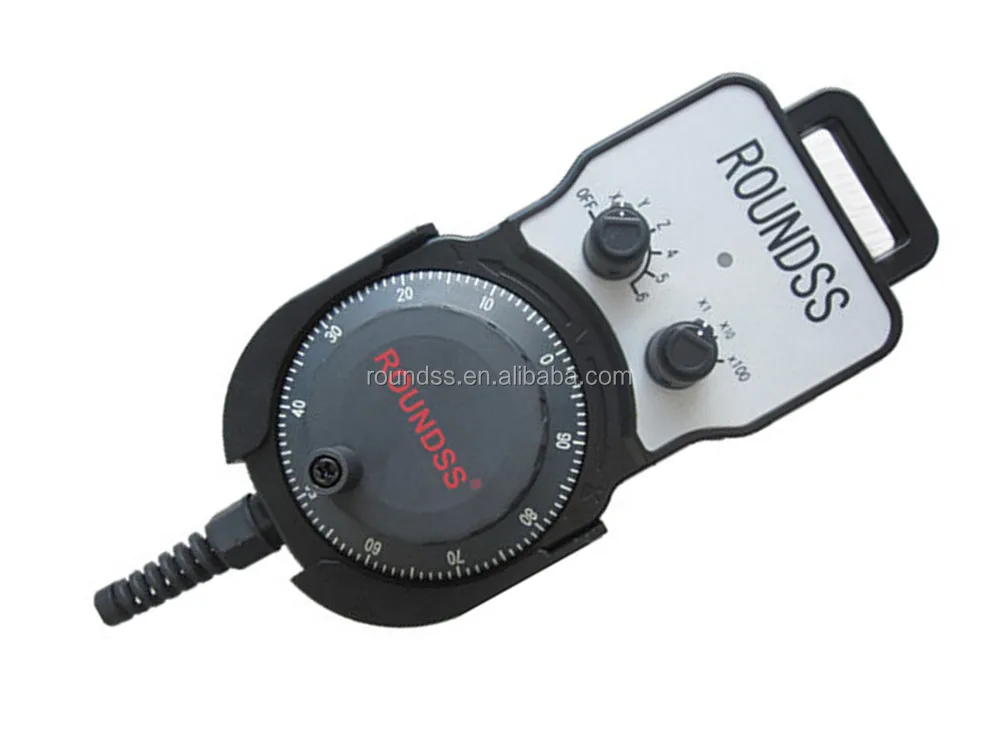

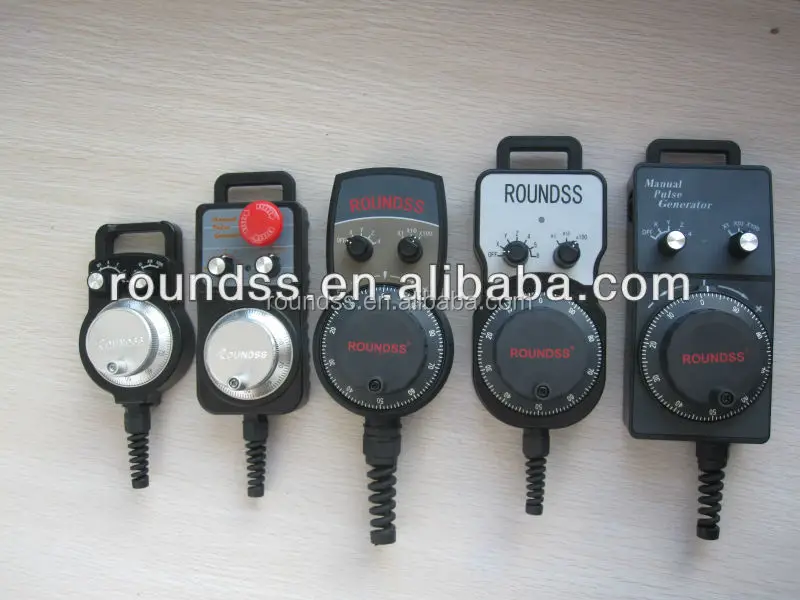

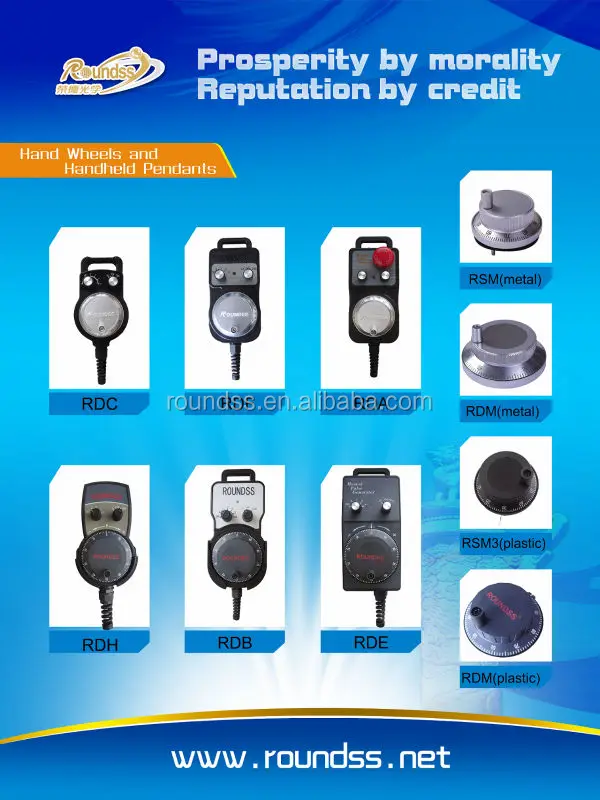

Manual pulse generator/portable cnc handwheel encoder MPG
Features & Applications
* Optional axis X Y Z 4, Magnification X1 X10 X100
* Handheld remote control part: resolution 25P/R and 100P/R are optional
* Sealed design
* Spring cable: 3m and 5m are optional
* Start button Emergency stop switch can be selected
* Supply voltage DC5-15V/DC10-30V
* Multiple installation ways: choose flip chart for installation or fringe magnetic stickers fixed on the machine
* Can be equipped with a variety of numerical control system, for example, FANUC, Siemens, etc
Roundss manual pulse generator 3m spiral line DC12V Voltage Oupute
|
Electrical/Mechanical Specifications | |||
|
Pulse No. |
25 P/R 100 P/R | ||
|
Output Circuit |
Voltage | Line Driver | |
|
Supply Voltage |
DC5V-15V/10-30V | DC5-0.25V | |
|
Current Requirement |
≤60mA | ≤180mA | |
|
Output Voltage |
High |
≥Vcc-1V | ≥2.5V |
|
Low |
≤0.5V | ≤0.5V | |
|
Rising/Falling Time |
≤1 us | ≤0.1 us | |
|
Frequency Response |
0-50kHz | ||
|
Isolation Resistance |
≥20Ω | ||
|
Normal Speed |
≤200r/min | ||
|
Max Speed |
600r/min | ||
|
Operating Temperature |
-10~+60℃ | ||
|
Storage Temperature |
-20~+70℃ | ||
|
Dimension |
164*84*34mm | ||
|
Optional axis |
Standard X Y Z 4 (2/3/4/5/6 axes optional) | ||
|
Magnification |
X1 X10 X100 | ||
|
Output Phase |
A,B | ||
|
Cable Length |
Standard 3M (3M/5M optional) | ||

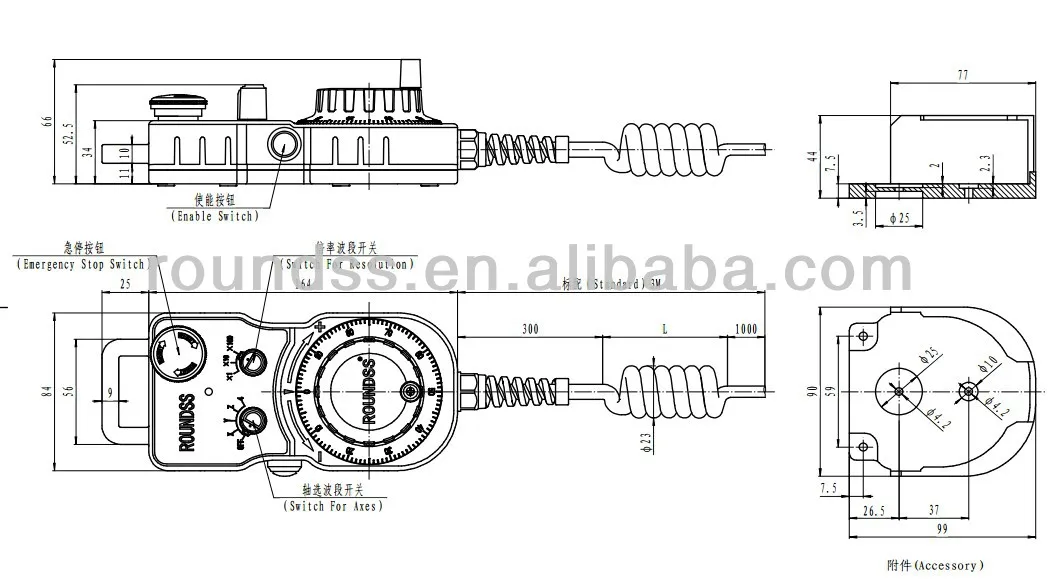

cnc handwheel encoder Dimension
Ordering Information
