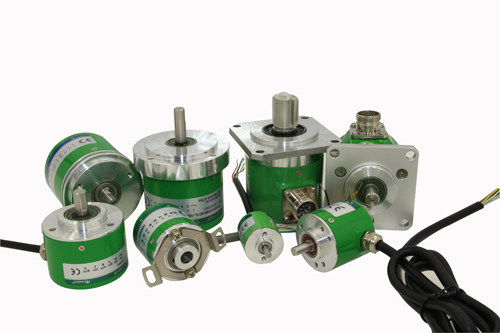

INCREMENTAL ENCODER SENSOR MANUFACTURER

Incremental encoders also known as Incremental Rotary Shaft Encoders are ideal for monitoring sensing a rotating shaft, or even linear position sensing when used in conjunction with ball screws etc, rollers. When integrated into a control system, they provide speed, position, acceleration & direction feedback data to the system.

Features:
* Good reliability, long life, anti-jamming performance.
* Sealing stainless steel shaft has a higher stability and protection.
* Aluminum flange shell is more solid and anti-impact.
* Outlet end use waterproof metal interface protection, infold sleeve design, no loose.

* Applicability to a wide variety of mechanical and industrial control.

High Quality Rotary Incremental Encoder from Sensor Manufacturer
SPECIFICATION External Diameter 25-100 mm
Shaft Diameter 4-50 mm
Slew Speed 6000r/min
Shaft Load ≤10 - 50 N
Operating Temperature -20 °C(-40 °C)- +85°C
Protection Class IP52 standard IP65
Termination Side Cable / Rear Cable/Side Plug/Rear Plug
Supply Voltage DC5V/8V-26V/12V-30V/12V
Output Model Voltage/Push-pull/Open collector/Line driver
Frequency Response 0-100kHz
Current Requirement ≤60mA
Output Pulse No. 10-6000
Index Length 1T
Output Phase A,B,Z/A,-A,B,-B,Z,-Z

Pre-sales Service

1.The incremental encoder can be customized to meet your need.

2.The questions about the encoder will be answered within 24 hours.

3.We have the best after-sale service.
