Product Description
Large hole diameter speed sensor

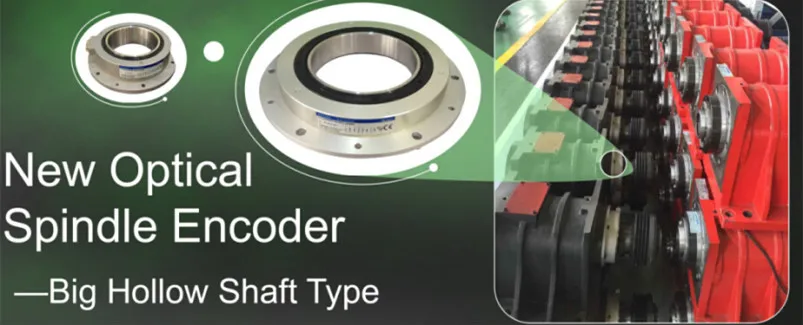

Optical STS185T CNC Spindle Encoder
Features:
1.Long life and saving cost.The Grating component of encoder is directly connected
to lathe spindle without the aid of flexible couplings,flange and
synchronous pulley,which saves the cost of mounting accessory.The bearingless
non-contact design reduces the mechanical loss and ensures higher life.
2.Reliable performance.American original parts and chips, and integratedphotoelectric switch module are adopted by STS series encoder to ensure stable
and reliable quality.The disc with special material could resist high temperature
and three times of vibration than regular encoder
| Electrical Specifications | |
| Supply Voltage | DC5V±0.25V |
| Output Signal | Line Driver ( AM26C31) |
| Current Requirement | ≤80mA |
| Frequency Response | 100kHz |
| High-level Output Voltage | ≥2.5V |
| Low-level Output Voltage | ≤0.5V |
| Rise Time | ≤200 ns |
| Fall Time | ≤200 ns |
| Resolution | 2048 PPR |
| Mechanical Specifications | |
| Max. Speed | 5000 RPM |
| Radial Load (Max.) | 100N |
| Axial Load (Max.) | 50N |
| Starting Torque | 5X1O-3 N·m |
| Environmental Specifications | |
| Storage Temperature | -40℃- +80℃ |
| Operating Temperature | -30℃- +70℃ |
| Humidity | 30-85% (No condensation) |
| Protection Class | IP64 |
Optical Bearless Spindle Encoder
Mechanical Dimensions
Pre-sales Service
1.The CNC spindle encoder can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
