INCREMENTAL ENCODERS
INCREMENTAL ELEVATOR DOOR ROTARY ENCODER
1.Hollow shaft elevator door encoder REC100B is specially designed for asynchronous traction machine of elevator.
2.High performance of anti mechanical damage rotary elevator door sensor.
3.High radial and axial load. Shock absorption rotary elevator door sensor
4.Manufacturer and have encoder quality control, better delivery control and better cost control.
5. Elevator motor rotary encoder

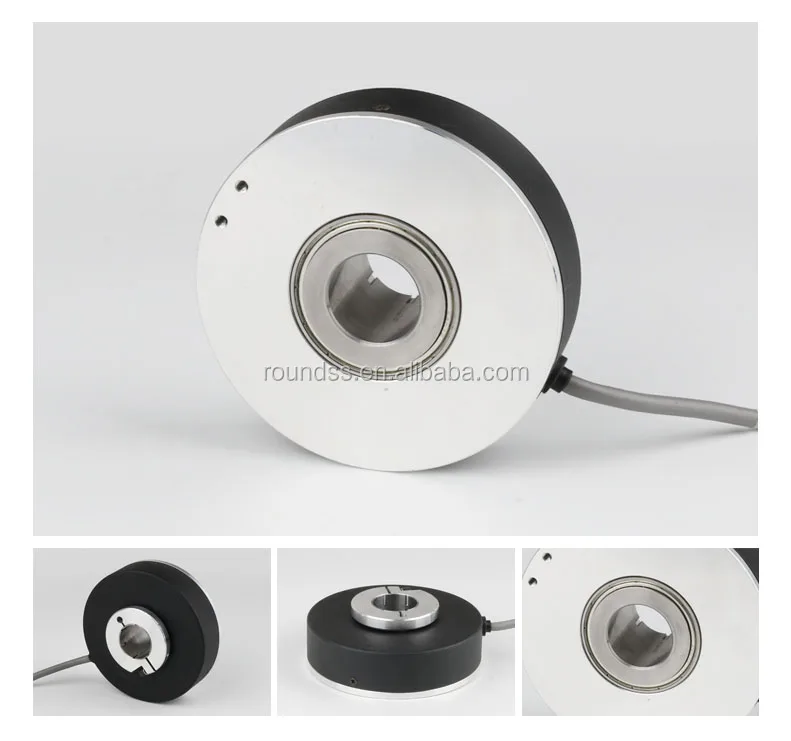

Rotary Hollow Shaft Elevator Door Sensor Encoder
1. 100mm outer diameter, 20-50mm shaft diameter
2,10-7200 ppr output pulse
3.5-30V supply voltage
4. Protection Class PI50
Elevator Door Sensor Encoder Hollow Shaft Rotary Encoder
| SPECIFICATION | External Diameter | 100mm |
| Shaft Diameter | 20-50mm | |
| Slew Speed | 6000r/min | |
| Shaft Load | ≤10N | |
| Operating Temperature | -20 °C(-40 °C)- +85°C | |
| Protection Class | IP50 | |
| Termination | Side Entry Cable/ Rear Entry Cable | |
| Supply Voltage | DC5V/8V-26V/12V-30V/12V | |
| Output Model | Voltage/Push-pull/Open collector/Line driver | |
| Output Pulse No | 10-7200, | |
| Refresh Rate | 0-100kHz,300kHz | |
| Index Length | 1T | |
| Current Requirement | ≤60mA | |
| Output Phase | A,B,Z/A,-A,B,-B,Z,-Z |
Mechanical Dimensions of Elevator Door Sensor Encoder Hollow Shaft Rotary Encoder
Optical Elevator Door Encoder for Sale
Pre-sales Service
1.The rotary elevator door sensor can be customzied to meet your need
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
