Packaging & Delivery
| Packaging Details: | Encoder Rotary Encoder Packing: Carton |
|---|---|
| Delivery Detail: | Shipped in 7 days after payment |
Product Description
Low Cost Solid Shaft Absolute Optical Angular Encoder
1.Standard single turn absolute rotary encoder with good resistance to mechanical damage capability is usually used in industry environment,can withstand high axial and radial load. 2. A variety of flange and output model is optional, adjustable reset function, timely correcting operation.
l Absolute Encoder External Diameter:42mm.
l Absolute Encoder Resolution:10-17 bits.
l Multiple Output interfaces absolute encoder.
l IP64.Be able to operate in harsh environment.

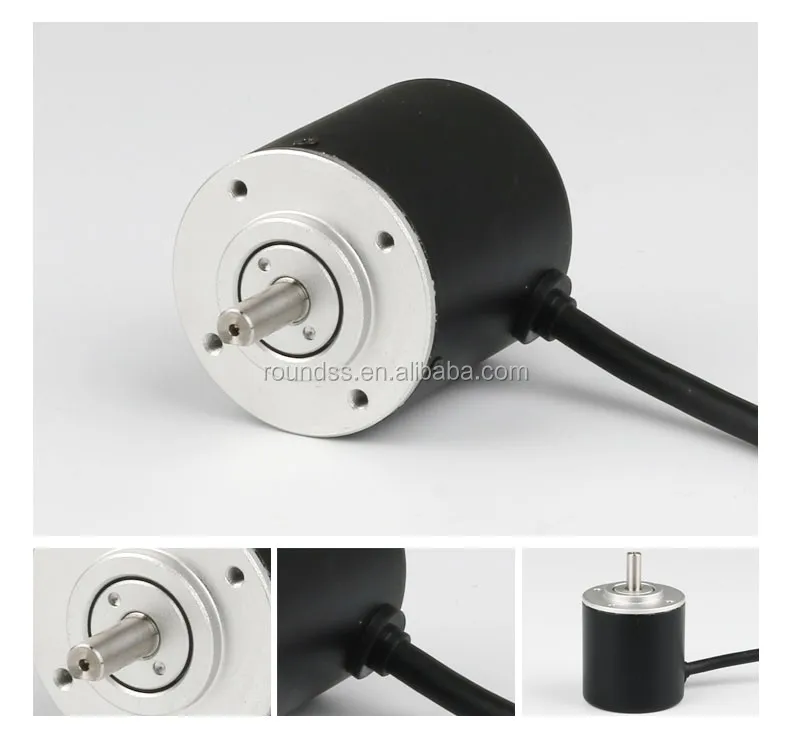

Low Cost Solid Shaft Absolute Optical Angular Encoder
Low Cost Solid Shaft Absolute Optical Angular Encoder
|
MECHANICAL SPECIFICATIONS
| |||
|
External Diameter |
42mm | ||
| Shaft Diameter | 6mm | ||
| Max Speed | 1000r/min | ||
| Shaft Load | ≤20N | ||
| Operating Temperature | -20 °C-+65°C/-40°C- +65°C | ||
| Protection Class | IP64 | ||
| Termination | Side Entry Cable/ Rear Entry Cable | ||
| Shock | 20g | ||
| Vibration Resistance | 2.5g | ||
| Radial cable | 1m standard | ||
|
ELECTRICAL SPECIFICATIONS
| |||
| Supply Voltage | DC5V/DC10-30V | ||
| Output Code | Binary Code/Gray Code | ||
| Interface | RS485/RS232/RS422/SSI/CAN/Modbus/Parallel | ||
| Refresh Rate | 50-1000kHz | ||
| Baud Rate | 4800b/s-115200b/s | ||
| Current Requirement | ≤180mA | ||
| Resolution in Bits | 10-17 | ||
| Protocol | Timing TXD/Bus TXD | ||
| Measuring Range | 0°-360° | ||

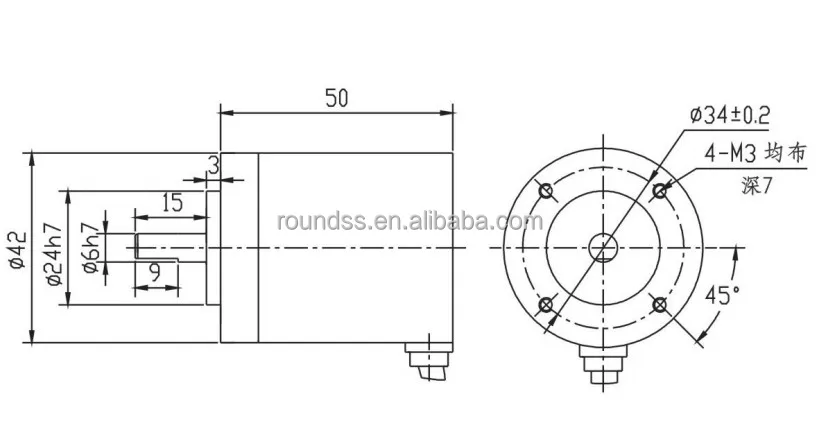

Mechanical Drawings
Low Cost Solid Shaft Absolute Optical Angular Encoder
Pre-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
