Packaging & Delivery
| Packaging Details: | Mitsubishi Elevator Encoder lift encoder packing: Carton |
|---|---|
| Delivery Detail: | Shipped in 7 days after payment |
Product Description

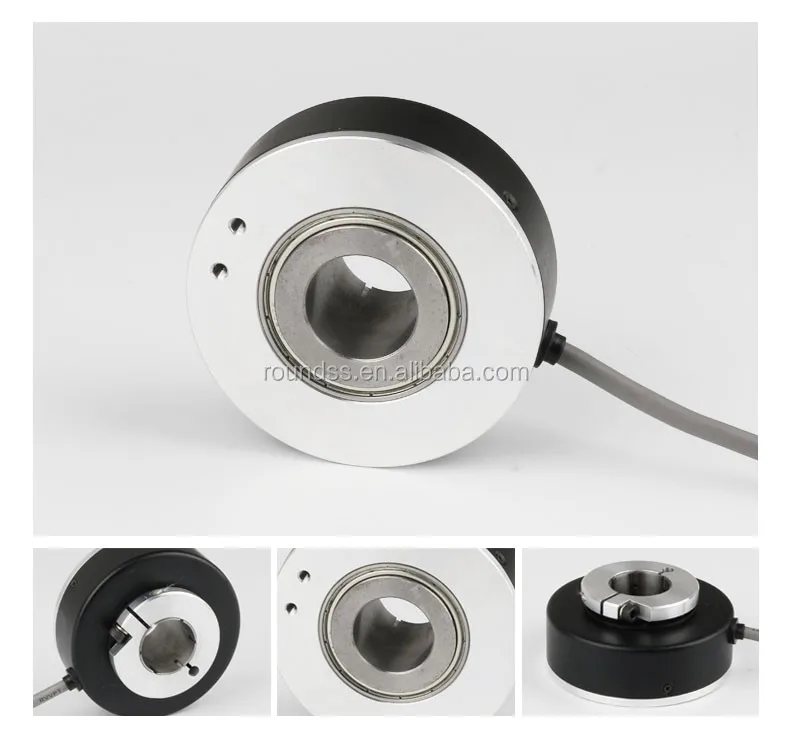

35mm Hollow Shaft Rotary Encoder Mitsubishi Elevator Encoder
Roundss has near 10 years experience in the design, manufacturing, sales and marketing of precision optical and magnetic encoders. Encoders and encoder systems are our only product. Since we specialize in the manufacturing of high quality precision encoders, we offer the best solutions to your most demanding requirements.
Features and Applications of Industrial Serise
The most common class of encoders is the industrial encoder. An industrial encoder can take punishing operating environments almost as well as heavy duty encoders – rough factories with contamination from dust, particulates, and moisture, in addition to moderate shock and temperature. An industrial encoder offers excellent speed and positioning performance. The class of industrial encoders is versatile.
Product Description
1.Encoder REC80B is widely applied in industrial control such as elevator application.
2.Compact design,thin, easy installation.
3.High radial and axial load.
4.Multiple hollow shaft diameters are optional.
5.Suit more application enviroments.
6. Low price and high quality
7. Hall encoder(Magnetic encoder)
8. Elevator rotary encoder
35mm Hollow Shaft Rotary Encoder Mitsubishi Elevator Encoder
|
MECHANICAL SPECIFICATIONS | |
|
External Diameter |
80mm |
|
Shaft Diameter |
18-30mm |
|
Slew Speed |
6000r/min |
|
Shaft Load |
≤20N |
|
Operating Temperature |
-20 °C(-40 °C)- +85°C |
|
Protection Class |
IP50 |
|
Termination |
Radial Cable |
|
ELECTRICAL SPECIFICATIONS | |
|
Supply Voltage |
DC5V-DC26V/10V-30V |
|
Output Model |
E/C/F/L |
|
Frequency Response |
0-100kHz |
|
Current Requirement |
≤60mA |
|
Output Pulse No. |
10-5000 |
|
Index Length |
1T |
|
Output Phase |
A,B,Z/A,-A,B,-B,Z,-Z |
|
TERMINATION | |||
|
G Side Entry Cable |
E Rear Entry Cable |
C Side Entry Plug |
R Rear Entry Plug |
|
OUTPUT MODEL | |||
|
E Voltage |
F Complementary |
C Open Collector |
L Line driver or according to user requirement |

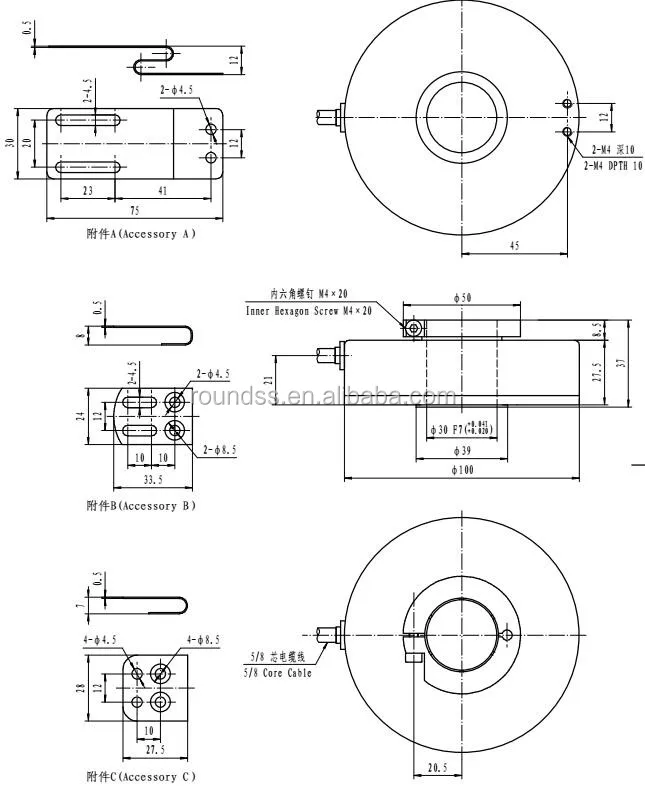

Mechanical Dimensions of 35mm Hollow Shaft Rotary Encoder Mitsubishi Elevator Encoder
Pre-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
