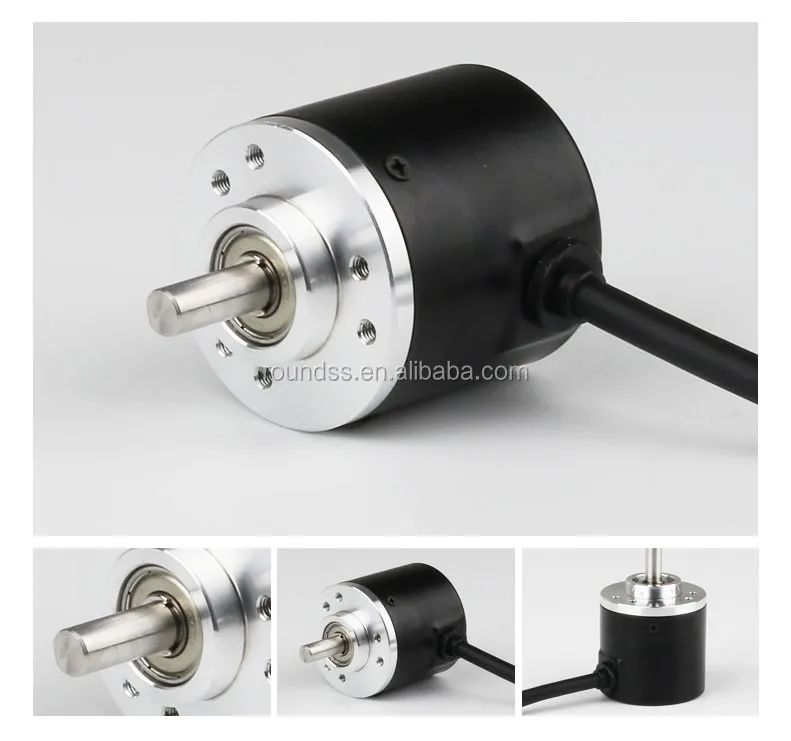

Principle of Small 2000 RPM Solid Shaft 9 Bits Absolute Encoder
Absolute encoders are devices used to measure lengths or angles and are used as distance gauges in machine tools, in handling and automation technology and on testing units. Absolute encoders output positional information in the form of a numerical value (code). This numerical value is unique across the entire resolution range of the absolute encoder. For this reason, no initial reference run is required, as is the case with incremental encoders. With rotary encoders, a distinction is made between single-turn encoders, which provide a resolution on just a single rotation and then revert to 0, and multi-turn encoders that provide a resolution over several rotations.
Product Features of Small 2000 RPM Solid Shaft 9 Bits Absolute Encoder
1. High reliability, shock resistant.
2. The number of components and welding points is decreased.
3. Add sealing
4. Be able to operate in harsh environment.
Mechanical Specifications
|
External Diameter |
38mm |
|
Shaft Diameter |
6mm |
|
Slew Speed |
1000r/min |
|
Shaft Load |
≤20N |
|
Operating Temperature |
-20 °C- +65°C/-40 °C- +65°C |
|
Protection Class |
IP 64 |
|
Termination |
G/E/C/R |
|
Vibration Resistance |
2.5g |
Electrical Specifications
|
Supply Voltage |
DC5V±0.05%/DC10V-30V |
|
Output Code |
Binary Code/Gray Code |
|
Output Model |
T |
|
Frequency Response |
≤500HZ |
|
Current Requirement |
≤180mA |
|
Output Bits |
12-15 |
|
Partition No. |
4096-32768 |
|
Measuring Range |
0°-360° |
Termination
|
G Side Entry Cable |
E Rear Entry Cable |
C Side Entry Plug |
R Rear Entry Plug |
Output Model
|
T=RS422/485 |
E=RS232 |
B=Parallel output | |
Mechanical Dimensions of Small 2000 RPM Solid Shaft 9 Bits Absolute Encoder
Pre-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
