Roundss High Quality 0- 1000mm Linear Draw Wire Displacement Sensor 0-5K Output

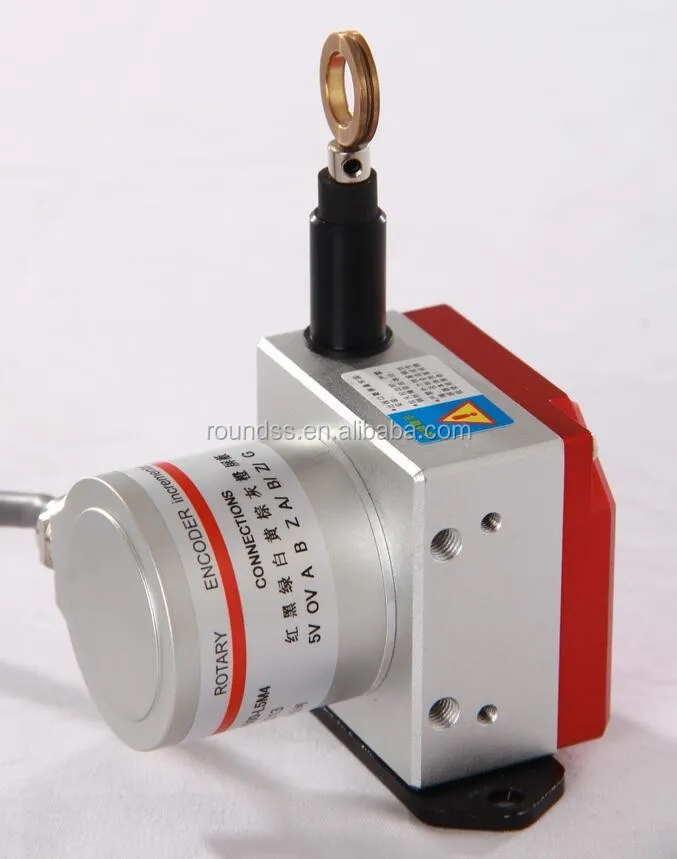

Draw-wire displacement encoders measure linear movements using a highly flexible steel cable.

The cable drum is attached to a sensor element which provides a proportional output signal.

Measurements are performed with high accuracy and high dynamic response. The use of high quality components guarantees a long life cycle and high operational reliability.

Principle of RLP50S Metal Wire Linear Length Measuring Sensor

Draw-wire position sensors, rope length gauges, rope length transmitters, pull wire sensor, linear position sensor, draw wire displacement sensor or string pots are just some of the names of the widespread forms of displacement measurement sensors, all of which are based on a principle like that of the household tape measure.

Draw-wire displacement sensors measure linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.

Measurements are performed with high accuracy and high dynamic response. The use of high quality components guarantees a long life cycle and high operational reliability.

We offer a wide selection of draw-wire displacement sensors with numerous types of output signal. This means that each customer has the opportunity of selecting the best sensor for his application.

Choose between analog and digital outputs to optimize your individual measurement task. OEM-solutions for customized integration possible.

Our sensors are application friendly due to the excellent measurement range to size ratio and the fact that they are easy to mount and use. The rugged sensor construction ensures reliable operation even under difficult ambient conditions.

Digital Signal Output Type
Incremental encoder and absolute encoder are optional for the digital signal output type. Output signals are square wave ABZ signals or Gray code signals. Measurement range is up to 1000mm. Linear accuracy: 0.05% FS. Resolution based on the different configuration can reach 0.001mm / pulse in maximum. Max. protection class: IP65. Working temperature: -40 ° C-+90 ° C.

Analog Signal Output Type
Imported precision potentiometers, Hall encoder, and absolute encoder are optional for the analog signal output type.The output signals: current 4-20 mA, voltage 0-5V , voltage voltage 0-10V, serial SSI and resistance signals. The maximum stroke can reach 10000MM. Max. protection class: IP65. Working temperature : -40 ° C-+90 ° C.

Application

Simple and fast Installation, high accuracy, good repeatability. It can be widely used in automation field, automatic measurement, automatic control, remote control and so on. It is applied in dimensional measurement and position control of linear guide systems, hydraulic cylinder system, the testing machine, printing machinery, level control instrument, and construction machinery. It is especially suitable for the control of the electro-hydraulic servo and hydraulic universal testing machine. It can completely replace the grating. It can be customized for other applications.

Note:

Wrong wiring may damage the sensor

Make sure wire in the power off state

Do not let go after wire is pulled out, otherwise the sensor could be easily damaged

Do not exceed the total length of the wire

Please ensure the cleanness of the equipment and wire line to prolong the service life

Avoid external force

Technical Parameters of RLP50S Metal Wire Linear Length Measuring Sensor

Sensor Type	Resistance 0——10K
Wire Rope	0.6mm high flexible imported plastic coated wire rope
Output Signal	0-5K	0-10K	4-20mA	0-5V	0-10V
Measuring Range	0——2000mm
Switching Circuit	Built-In	Outlay	Outlay with Isolation
Zero-point and Full-scales	Adjustable
Linear Accuracy	0.1%——0.05%FS
Repeatability Accuracy	0.0001
Resolution(mm)	Infinitesimal in Theory
Max. Reciprocating Speed	1000mm/s
Reciprocating Frequence	50 Hz(See Reciprocating Amplitude)
Power	<1W
Operating Voltage	10-30V(Built-In)	12V,24V,28V(Outlay)
Outlet Tension	4N
Wight(kg)	0.45
Operating Temperature	-50°C——110°C
Life	>10 million times
Vibration Resistance	10HZ——1500HZ	10G
Cable Length	1m(Standard)	Others
Housing Material	Imported aluminium alloy, oxidation surface treating, wear and corrosion prevention.
Protection Class	IP54(Standard)	IP65

Pre-sales service of RLP50S Metal Wire Linear Length Measuring Sensor

1.The optical encoder sensor can be customized to meet your need.

2.The questions about the encoder will be answered within 24 hours.

3.We have the best after-sale service.
