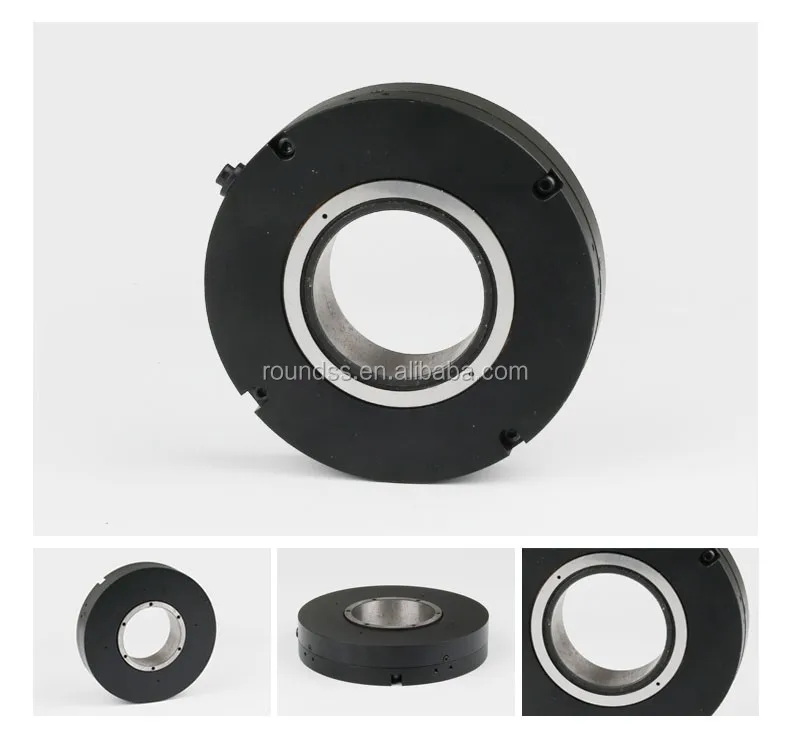

RDE115T Absolute Large Hollow Shaft Encoder High Resolution
1.Standard single turn absolute rotary encoder with good resistance to mechanical damage capability is usually used in industry environment,can withstand high axial and radial load. 2. A variety of flange and output model is optional, adjustable reset function, timely correcting operation.
Principle of Absolute Encoders
Absolute encoders are devices used to measure lengths or angles and are used as distance gauges in machine tools, in handling and automation technology and on testing units. Absolute encoders output positional information in the form of a numerical value (code). This numerical value is unique across the entire resolution range of the absolute encoder. For this reason, no initial reference run is required, as is the case with incremental encoders. With rotary encoders, a distinction is made between single-turn encoders, which provide a resolution on just a single rotation and then revert to 0, and multi-turn encoders that provide a resolution over several rotations.
Hollow Shaft Encoder
A hollow shaft encoder design offers simplicity to the application:
- More forgiving shaft sizing, especially in length
- Easier installation, positioning, and alignment
- Moderate resistance against shock and vibration
- Smaller installation profile, without extra coupling
- Good foundation for speed and RPM feedback
Product Features of RDE115T Absolute Large Hollow Shaft Encoder High Resolution
1. High reliability, shock resistant.
2. The number of components and welding points is decreased.
3. Add sealing
4. Be able to operate in harsh environment.
Mechanical Specifications
|
External Diameter |
115mm |
|
Shaft Diameter |
50mm |
|
Slew Speed |
1000r/min |
|
Shaft Load |
≤30N |
|
Operating Temperature |
-20 °C- +65°C/-40 °C- +65°C |
|
Protection Class |
IP 50 |
|
Termination |
G/C |
|
Vibration Resistance |
2.5g |
Electrical Specifications
|
Supply Voltage |
DC5V±0.05%/DC10V-30V |
|
Output Code |
Binary Code/Gray Code |
|
Output Model |
T/E/B |
|
Frequency Response |
≤500HZ |
|
Current Requirement |
≤180mA |
|
Output Bits |
12-16 |
|
Partition No. |
4096-65536 |
|
Measuring Range |
0°-360° |
Termination
|
G Side Entry Cable |
E Rear Entry Cable |
C Side Entry Plug |
R Rear Entry Plug |
Output Model
|
T=RS422/485 |
E=RS232 |
B=Parallel output | |
Pre-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
