Single-turn Absolute encoder-ROUNDSS！

Single-turn Absolute encoder
Rotary encoder is always used in angle measurement by the non-contact photo-electricity technology. It is also playing a key position in position detection.
Single ring absolute encoder rejects the traditional moire fringe measurement method, using the new encoding method-describe a circle code on grating disc.It not only greatly reduces the encoder disk volume and it brings convenience for describing the process. At the same time,the optical measurement signal could be got only by one piece of code. the encoder adjustment becomes to be easier. And by using the SSPA wire array to receive the photoelectric signal, the post processing circuit is greatly simplified.. According to the special description methods of grating code channel, through a certain algorithm, can accurately read the absolute value of each position of the encoder. Therefore, single code Daoguang gate disc composed of absolute encoder in meet the accuracy requirements, become small size, light weight, stable and reliable, easy to use.
Roundss’ single turn absolute encoders provide unique positional information for each shaft location. This location is independent from all other locations.
Here are some photos of our single turn absolute encoders:

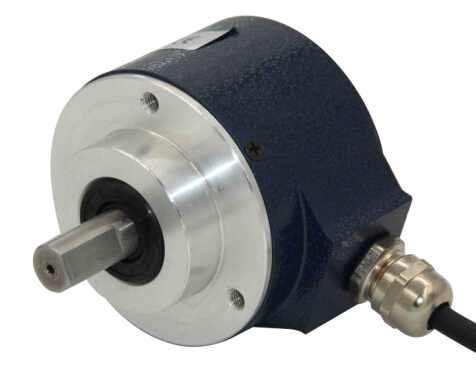

RD58S10 absolute single turn solid shaft encoder

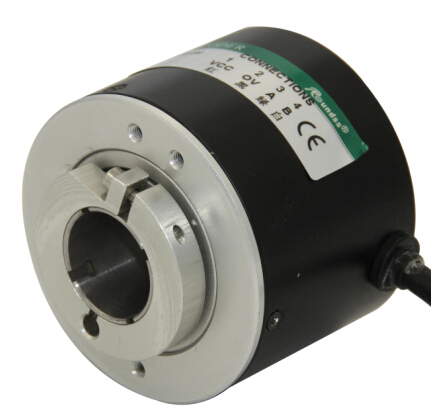

RD58T20 absolute single-turn hollow shaft encoder
