Product Description

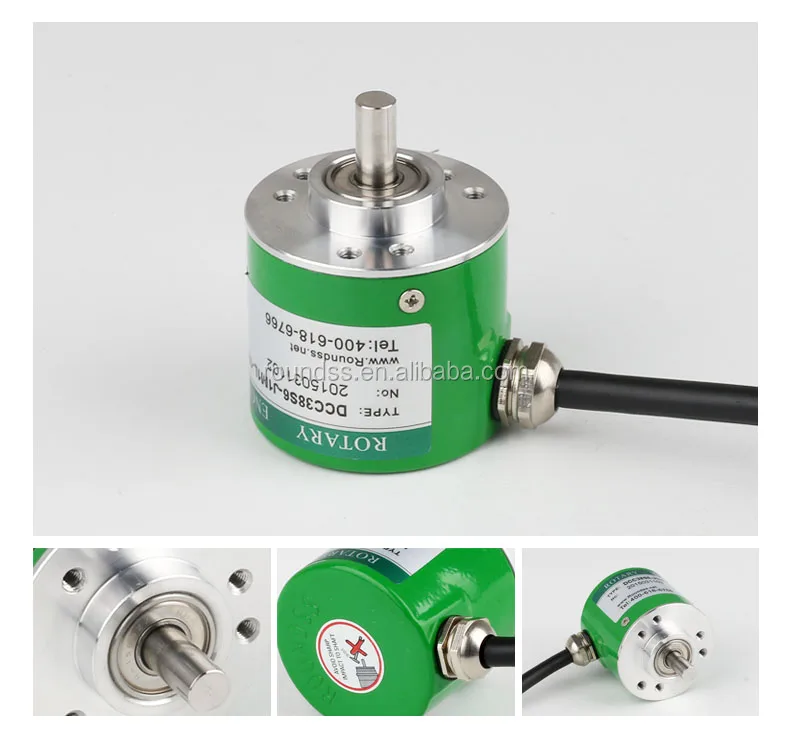

ROTRY INCREMENTAL ENCODER 38MM HOUSING SENSOR
Incremental shaft encoders also known as Incremental Rotary Shaft Encoders are ideal for monitoring sensing a rotating shaft, or even linear position sensing when used in conjunction with ball screws etc, rollers. When integrated into a control system, they provide speed, position, acceleration & direction feedback data to the system. Incremental encoders produce a series of pulses directly proportional to movement of its shaft.
Features:
* Good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.
| SPECIFICATION | External Diameter | 38mm |
| Shaft Diameter/Shaft Hollow Diameter | 6/8mm | |
| Slew Speed | 6000r/min | |
| Shaft Load | ≤10N | |
| Operating Temperature | -20 °C(-40 °C)- +85°C | |
| Protection Class | IP65 | |
| Termination | Side Entry Cable/ Rear Entry Cable | |
| Supply Voltage | DC5V/8-26V/12V-30V/12V | |
| Output Model | Voltage/Push-pull/Open collector/Line driver | |
| Frequency Response | 0-100kHz | |
| Current Requirement | ≤60mA | |
| Output Pulse No. | 10-6000 | |
| Index Length | 1T | |
| Output Phase | A,B,Z/A,-A,B,-B,Z,-Z |

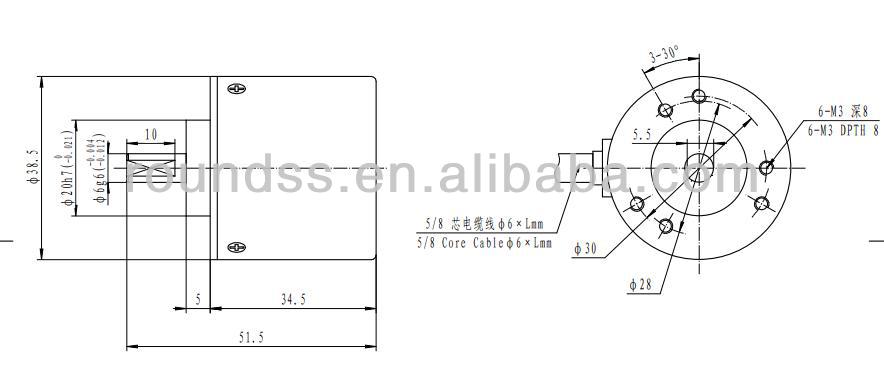

Mechanical Dimensions Low Cost Speed Encoder Rotary Sensor 38mm Housing 6mm Solid Shaft
Pre-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
