Packaging & Delivery
| Packaging Details: | Linear Position Sensor packing:Carton |
|---|---|
| Delivery Detail: | Shipped in 7 days after payment |

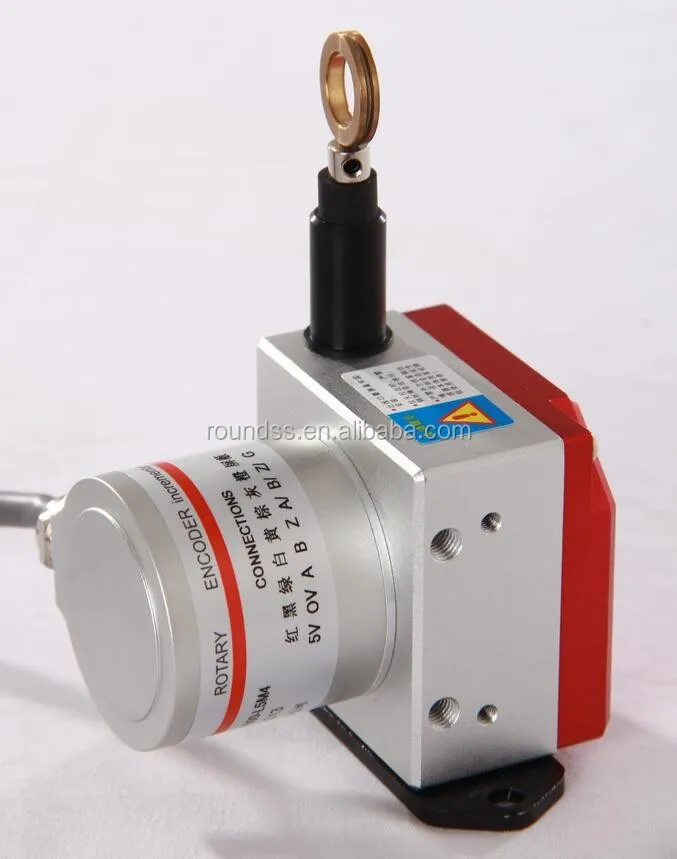

Roundss High Quality 0-1000mm Digital Linear Position Sensor
Technical Parameters(anolog) of Roundss High Quality 0-1000mm Digital Linear Optical Encoder
|
Sensor Type |
Potentiometer Resistance 0——10K |
|
Wire Rope |
0.6mm high flexible imported plastic coated wire rope |
|
Measuring Range |
0——1000mm |
|
Linear Accuracy |
0.1%——0.05%FS |
|
Wire Extension Force |
4N |
|
Operating Temperature |
-50°C——110°C |
|
Vibration Resistance |
10HZ——1500HZ 10G |
|
Cable Length |
1meter(Standard),Others |
|
Housing Material |
Imported aluminium alloy, oxidation surface treating, wear and corrosion prevention. |
|
Frequency Response |
Power <1W |
|
Operating Voltage |
10-30V(Built-In) 12V,24V,28V(Outlay) |
|
Output Signal Voltage |
0-10K,4-20mA,0-10V |
|
Repeatability Accuracy |
0.01% |
|
Resolution(mm) |
Infinitesimal in Theory |
|
Max. Reciprocating Speed |
1000mm/s |
|
Reciprocating Frequence |
50 Hz(See Reciprocating Amplitude) |
|
Weight(kg) |
0.45 |
|
Life |
>10 million times |
|
Protection Class |
IP54(Standard),IP65 |
|
Switching Circuit |
Built-In,Outlay,Outlay with Isolation |
|
Zero-point and Full-scales |
Adjustable |
Digital display meter Features:
|
SUPPLY VOLTAGE |
AC220V 50Hz |
|
IMPULSE FREQUENCY |
≤500K |
|
INPUT IMPEDANCE |
5K |
|
RATIO RANGE |
0.000~999.999 |
|
DISPLAY RANGE |
-199999~999999 |
|
WORKING TEMPERATURE |
-10°C~50°C |
|
MOUNTING |
snap-in |
|
CONTACT RATING |
AC220V 3A DC24V 3A |
|
PULSE WIDTH |
≥2us |
|
CUT-SIZE |
92×43. 5mm |
|
PULSE LEVEL |
H:3.5~50V L:-50V~0.5V |
|
FREQUENCY RESPONSE |
50kHz |
|
Dimensions: |
96×48×115mm |
Pre-sales Service
1.The linear encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
