Packaging & Delivery
| Packaging Details: | Linear Position Sensor packing:Carton |
|---|---|
| Delivery Detail: | Shipped in 7 days after payment |
18 MONTHS: Free Replacement of Defective Products within 18 Months
Product Description

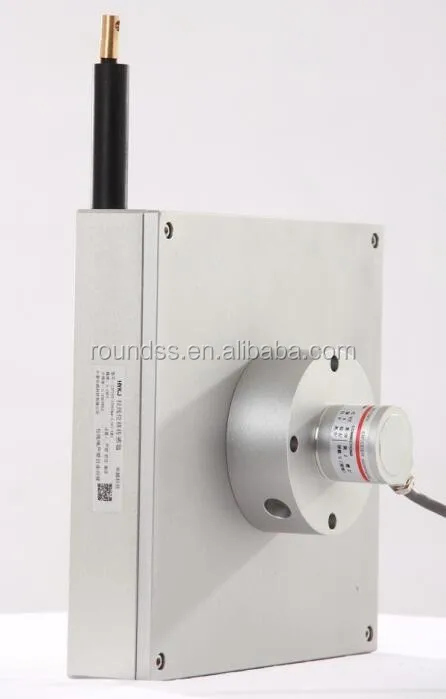

0- 10000mm Linear Position 0-10K Analog Linear Position Sensor
Draw-wire displacement encoders measure linear movements using a highly flexible steel cable.
The cable drum is attached to a sensor element which provides a proportional output signal.
Measurements are performed with high accuracy and high dynamic response. The use of high quality components guarantees a long life cycle and high operational reliability.
0- 10000mm Linear Position 0-10K Analog Draw Wire Encoder
|
Sensor Type |
Potentiometer Resistance 0——10K |
| Wire Rope | 0.6mm high flexible imported plastic coated wire rope |
| Output | 0-5K,0-10K,4-20mA,0-5V,0-10V |
| Measuring Range | 0——10000mm |
| Linear Accuracy | 0.1%——0.05%FS |
| Outlet Tension | 4N |
| Operating Temperature | -50°C——110°C |
| Vibration Resistance | 10HZ——1500HZ 10G |
| Cable Length | 1meter(Standard),Others |
| Housing Material | Imported aluminium alloy, oxidation surface treating, wear and corrosion prevention. |
| Power | <1W |
| Operating Voltage | 10-30V(Built-In) |
| Repeatability Accuracy | 0.01% |
| Resolution(mm) | Infinitesimal in Theory |
| Max. Reciprocating Speed | 1000mm/s |
| Reciprocating Frequence | 50 Hz(See Reciprocating Amplitude) |
| Weight(kg) | 0.45 |
| Life | >10 million times |
| Protection Class | IP54(Standard),IP65 |
| Switching Circuit | Built-In,Outlay,Outlay with Isolation |
| Zero-point and Full-scales | Adjustable |
Note:
Wrong wiring may damage the sensor
Make sure wire in the power off state
Do not let go after wire is pulled out, otherwise the sensor could be easily damaged
Do not exceed the total length of the wire
Please ensure the cleanness of the equipment and wire line to prolong the service life
Avoid external force
Pre-sales service of 0- 10000mm Linear Position 0-10K Analog Draw Wire Encoder
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
