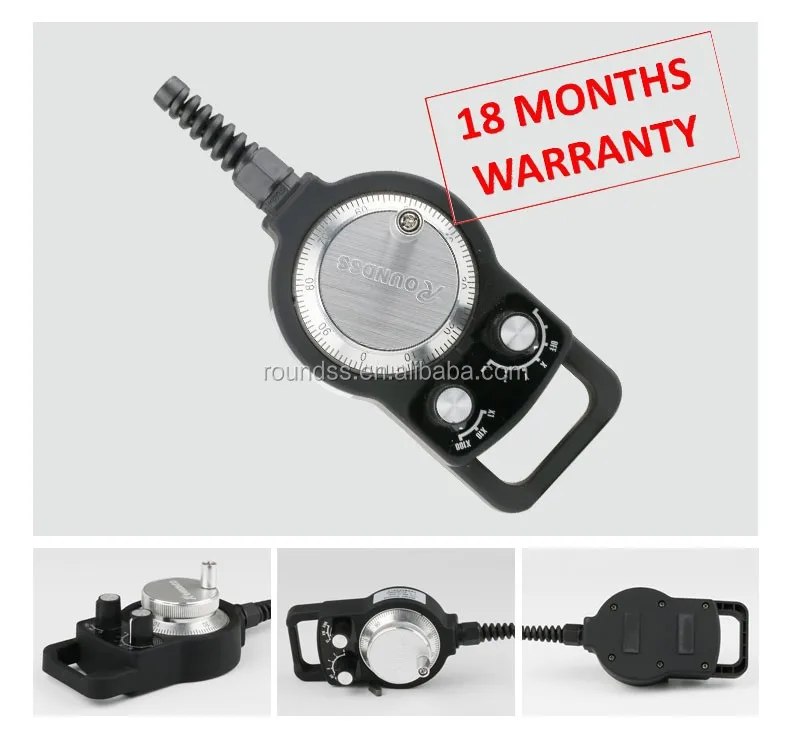

ROUNDSS MANUAL PULSE GENERATOR HANDWHEEL MPG
Manual pulse generators(handwheel/mpg) are typically rotating knobs that generate electrical pulses. They are normally associated with computer numerically controlled (CNC) machinery or other devices involving positioning. When the pulse generator sends an electrical pulse to an equipment controller, the controller then moves a piece of equipment a predetermined distance with every pulse.
Optical encoders use a light source and a photo detector array to read the optical pattern of a plastic or glass disc and translate the pattern into a position data code.
Manual Pulse Generator Handwheel MPG 100 PPR
| SPECIFICATION | Output Pulse | 100P/R | 25P/R | |
| Output Model | Voltage | Line Driver | ||
| Supply Voltage | DC5V-15V/10-30V | DC5V-0.25V | ||
| Current Requirement | ≤60mA | ≤150mA | ||
| Signal Level | High | ≥Vcc-1V | ≥2.5V | |
| Low | ≤0.5V | ≤0.5V | ||
| Rise/Fall time | ≤1us | ≤0.1us | ||
| Output Phase | A,B,-A,-B | |||
| Frequency Response | ≤30kHz | |||
| Risolation resistance | ≥20MΩ | |||
| Normal rotational speed | ≤200r/min | |||
| Slew speed | 600r/min | |||
| Operating temperature | -10-+60°C | |||
| Storage Temperature | -20-+70°C | |||
| Dimension | 140mm×72mm × 27mm | |||
| Switch for resolution | ×1,×10,×100 | |||
| Switch for Axes | O/X/Y/Z/2/3/4/6 | |||
