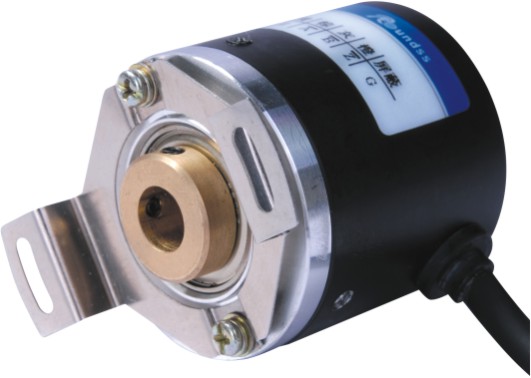

End Hollow Shaft Incremental Rotary Encoder Systems
Packaging & Delivery
| Packaging Details: | Carton |
|---|---|
| Delivery Detail: | Within a week after receipt of the payment |
Product Description
End Hollow Shaft Incremental Rotary Encoder Systems
- Solid shaft encoder: OD25mm to 90mm, shaft diameter from 4mm to 15mm.
- Hollow shaft encoder : OD38mm to 100mm, hole diameter from 6mm to 50mm.
- Many kinds of types to suit different applications.
- Resolution to 65536 ppr.
- Multiple ways for installation.
There are several series for incremental encoders to meet different requirements of customers and applications. For example, economical encoder, universal encoder, reinforced encoder, high precision reinforced enocder, etc. Also our incremental encoders has been widely used in industrial, automation control of motors, elevators, machine tools, glasses, cermaics, food machinery, aerospace, printing machinery and many other applications.
End Hollow Shaft Incremental Rotary Encoder Systems
Features & Applications
Small size, light quality, compact structure, easy installation.
Up to 400 ppr.
Suitable for precision work environment of office automation and industrial control applications, such as projectors, injection molding machines, packaging, printing machinery, etc.
End Hollow Shaft Incremental Rotary Encoder Systems
Parameter
| Mechanical Specifications | |
| External Diameter | 38mm |
| Hole Diameter | 8mm |
| Max Speed | 6000r/min |
| Shaft Load | ≤10N |
| Operating Temperature | -20 °C (-40 °C )~+85 °C |
| Connection | Side Entry Cable |
| Protection Class | IP 50 |
| Cable Length | Standard 1M |
| Electrical Specifications | |
| Supply Voltage | DC5V-26V/DC10V-30V |
| Output Circuit | Voltage/Open Collector/Push-pull/Line Driver/Wide Voltage Line Driver |
| Frequency Response | 0-100kHz |
| Current Requirement | ≤60mA |
| Output Pulse No. | 10-3600 |
| Index Length | 1T |
| Output Phase | A,B,Z/A,-A,B,-B,Z,-Z |
End Hollow Shaft Incremental Rotary Encoder Systems
Dimension Drawing
Packaging & Shipping
Packaging Details
Payment & Delivery
Company Information
We are looking for distributors or agents all over the world. Hope to be your good partner in business.
Roundss is one of the leading producers of encoders and encoder solutions for the industrial applications.Founded in 2006, the company with headquarter in Changchun, the optical industry base of China. With 4 subsidiaries in Guangzhou, Wuxi, Beijing, Xi’an as well as more than 30 representative offices around China and 5 distributors abroad, Roundss maintains a presence all around the world.
