Packaging & Delivery
| Packaging Details: | Absolute Encoder packing: Carton |
|---|---|
| Delivery Detail: | Shipped in 7 days after payment |
18 MONTHS: Free Replacement of Defective Products within 18 Months

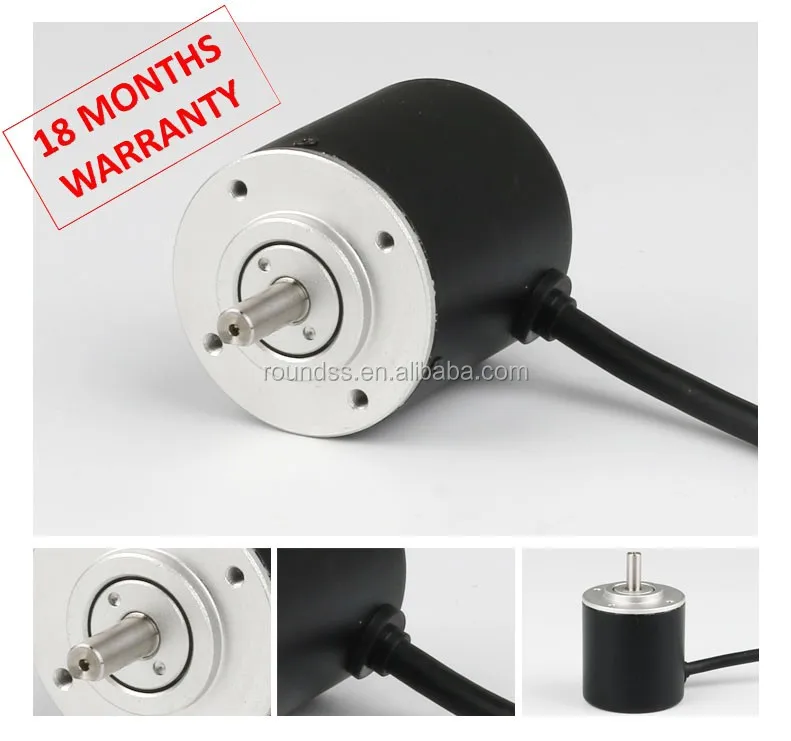

42mm Absolute Rotary Encoder/ Solid Shaft Single-turn Sensor multiturn absolute encoder
Absolute Encoders also known as Absolute Rotary Encoders provide a unique binary bit output for each resolvable position. This unique bit pattern (shaft position) is read directly from the disc arrangement within the absolute encoder, so that if power is lost, the true shaft position value is not lost. On power up, the true actual shaft position value is read again from the encoder disc, so the machine can continue its operation without the need for returning to a home position before continuing.
Features:
1.Universal economical absolute encoder,equiped with ASIC photoelectric device, with firm and high relable capability, long life, anti-interference, wide operating temperature range.
2. The absolute encoder is equiped with stainless steel NSK bearing and K9 glass encode disc, aluminum flange and shell.
<<
42mm Absolute Rotary Encoder/ Solid Shaft Single-turn Sensor/6mm shaft diameter
| MECHANICAL SPECIFICATIONS | |||
| External Diameter | 42mm | ||
| Shaft Diameter | 6mm (Optional) | ||
| Max Speed | 1000r/min | ||
| Shaft Load | ≤20N | ||
| Operating Temperature | -20 °C-+65°C/-40°C- +65°C | ||
| Protection Class | IP64 | ||
| Termination | Side Entry Cable/ Side Entry Plug | ||
| Shock | 20g | ||
| Vibration Resistance | 2.5g | ||
| Radial cable | 1m standard | ||
| ELECTRICAL SPECIFICATIONS | |||
| Supply Voltage | DC5V±0.05%/DC9-30V | ||
| Output Code | Binary Code/Gray Code | ||
| Interface | RS485/RS422/RS232/SSI/CAN/Parallel | ||
| Refresh Rate | 50-1000kHz | ||
| Baud Rate | 4800-115200 | ||
| Current Requirement | ≤180mA | ||
| Resolution in Bits | 10-17 | ||
| Protocol | Timing TXD/Bus TXD | ||
| Measuring Range | 0°-360° | ||

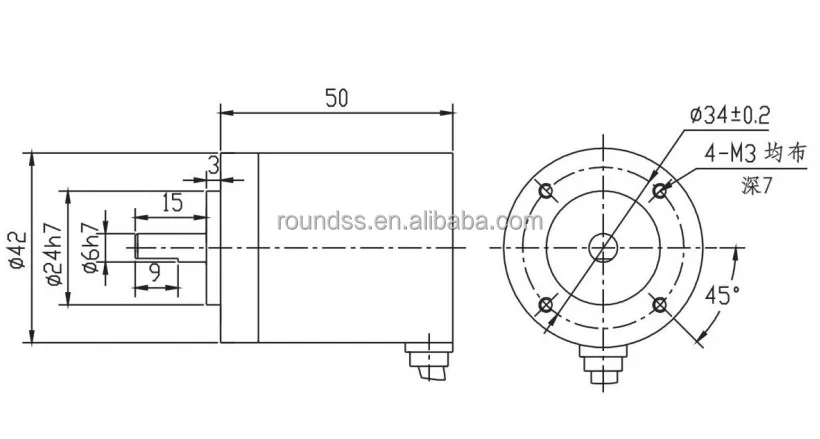

Mechanical Drawing of 42mm Absolute Rotary Encoder/ Solid Shaft Single-turn Sensor/6mm shaft diameter
re-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
