Product Description

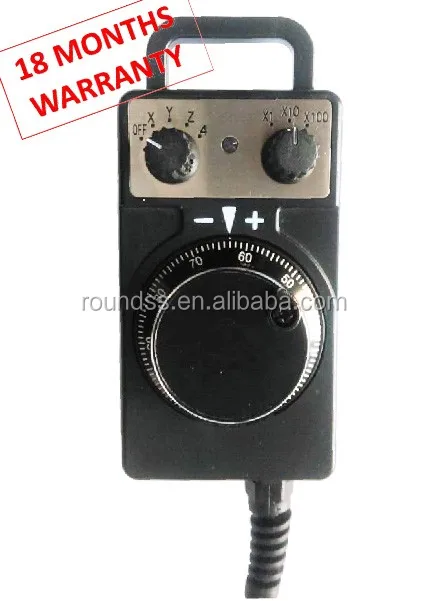

ROUNDSS MANUAL PULSE GENERATOR CNC MPG HANDWHEEL
Manual pulse generators(handwheel/mpg) are typically rotating knobs that generate electrical pulses. They are normally associated with computer numerically controlled (CNC) machinery or other devices involving positioning. When the pulse generator sends an electrical pulse to an equipment controller, the controller then moves a piece of equipment a predetermined distance with every pulse.
Optical encoders use a light source and a photo detector array to read the optical pattern of a plastic or glass disc and translate the pattern into a position data code.
18 MONTHS: Free Replacement of Defective Products within 18 Months
Manual Pulse Generator Handwheel MPG 100 PPR
| SPECIFICATION | Output Pulse | 100P/R | 25P/R | |
| Output Model | Voltage | Line Driver | ||
| Supply Voltage | DC5V-15V/10-30V | DC5V-0.25V | ||
| Current Requirement | ≤60mA | ≤150mA | ||
| Signal Level | High | ≥Vcc-1V | ≥2.5V | |
| Low | ≤0.5V | ≤0.5V | ||
| Rise/Fall time | ≤1us | ≤0.1us | ||
| Output Phase | A,B,-A,-B | |||
| Frequency Response | ≤30kHz | |||
| Risolation resistance | ≥20MΩ | |||
| Normal rotational speed | ≤200r/min | |||
| Slew speed | 600r/min | |||
| Operating temperature | -10-+60°C | |||
| Storage Temperature | -20-+70°C | |||
| Dimension |
140mm×72mm×27mm | |||
| Switch for resolution | ×1,×10,×100 | |||
| Switch for Axes | O/X/Y/Z/4 | |||

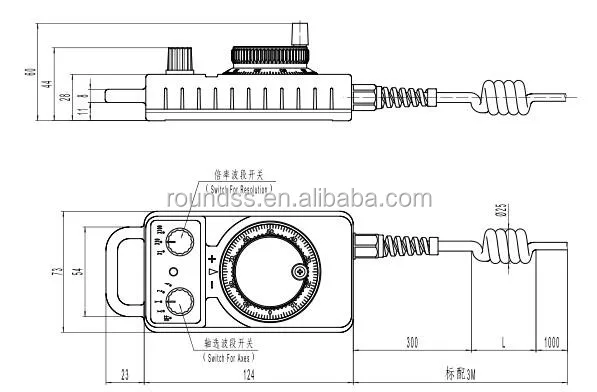

Mechanical Dimensions Manual Pulse Generator Handwheel MPG 100 PPR
Pre-sales Service
1.The mpg handwheel can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
