Packaging & Delivery
| Packaging Details: | 4 Axis MPG Pendant packing:Carton |
|---|---|
| Delivery Detail: | Delivery within 5 work days on completion of the payment |
18 MONTHS: Free Replacement of Defective Products within 18 Months
Stepper Motor Encoder MPG Hand Pulse Generator
Roundss has near 10 years experience in the design, manufacturing, sales and marketing of precision optical and magnetic encoders. Encoders and encoder systems are our only product. Since we specialize in the manufacturing of high quality precision encoders, we offer the best solutions to your most demanding requirements.
Features
1. All-plastic Shell stepper motor encoder.
2. High Dielectric Strength stepper motor encoder.
3. Anti-oil Seal Design CNC stepper motor encoder.
4. Hand Pulse Sensor Ideal for CNC machine control.
5. Innovative Design stepper motor encoder.
6. Easy to Move stepper motor encoder.
Stepper Motor Encoder MPG Hand Pulse Generator
| SPECIFICATION | Output Pulse | 100P/R | 25P/R | |
| Output Model | Voltage | Line Driver | ||
| Supply Voltage | DC5V-15V/10-30V | DC5V-0.25V | ||
| Current Requirement | ≤60mA | ≤150mA | ||
| Signal Level | High | ≥Vcc-1V | ≥2.5V | |
| Low | ≤0.5V | ≤0.5V | ||
| Rise/Fall time | ≤1us | ≤0.1us | ||
| Output Phase | A,B,-A,-B | |||
| Frequency Response | ≤50kHz | |||
| Risolation resistance | ≥20MΩ | |||
| Normal rotational speed | ≤200r/min | |||
| Slew speed | 600r/min | |||
| Operating temperature | -10-+60°C | |||
| Storage Temperature | -20-+70°C | |||
| Dimension | 166.5mm×91mm × 37mm | |||
| Switch for resolution | ×1,×10,×100 | |||
| Switch for Axes | O/X/Y/Z/2/3/4/6 | |||

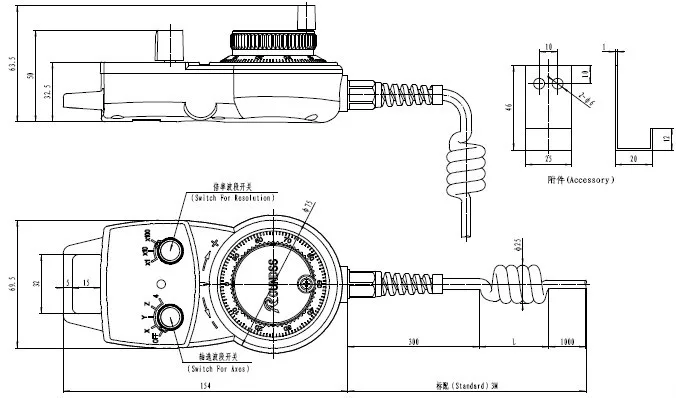

Mechanical Dimensions Stepper Motor Encoder MPG Hand Pulse Generator
Pre-sales Service
1.The stepper motor encoder can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
