Principle
Manual pulse generators(handwheel/mpg) are typically rotating knobs that generate electrical pulses. They are normally associated with computer numerically controlled (CNC) machinery or other devices involving positioning. When the pulse generator sends an electrical pulse to an equipment controller, the controller then moves a piece of equipment a predetermined distance with every pulse.
Optical encoders use a light source and a photo detector array to read the optical pattern of a plastic or glass disc and translate the pattern into a position data code.
Features

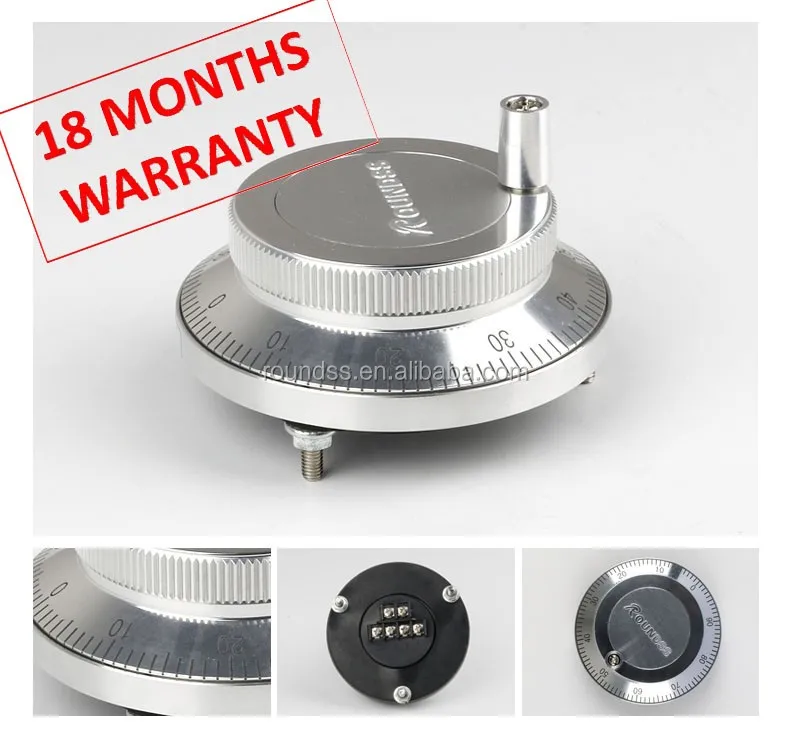

1. Mounting part size Φ72
2. Thin and Light
3. 3-m3 Screws
4. Metal Gear
5. Clear Rotating Feeling
6. Line Driver Output
7. High Capacity of Resisting Disturbance
8. Suitable for Long Distance Transmission
9. CNC handwheel mpg
| Electrical Specifications | Mechanical Specifications | ||||||
| Supply Voltage DC(V) | 5-15V/10-30V | 5 ±0.5 | Slew Speed | 600r/min | |||
| Output Model | Voltage | Line Driver | Normal Rotational Speed | ≤200r/min | |||
| Current Consumption(mA) | ≤60 | ≤120 | Dial Life | 3×105turns(≤200r/min) | |||
| Output Voltage(V) | VH | ≥Vcc-1 | ≥2.5 | Environmental Specifications | |||
| VL | ≤0.5 | ≤0.5 | Operating Temperature | 0-+60°C | |||
| Rise/Fall time(ns) | ≤1 | ≤1 | Weight | Appr. 130g | |||
| Frequency Response(kHz) | ≤50 | ≤50 | Protection Class | IP 50 | |||
Mechanical Dimensions
Pre-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
