Product Description
CNC bending machine encoder RTC66S15 Spindle Encoder IP65
Incremental shaft encoders also known as Incremental Rotary Shaft Encoders are ideal for monitoring sensing a rotating shaft, or even linear position sensing when used in conjunction with ball screws etc, rollers. When integrated into a control system, they provide speed, position, acceleration & direction feedback data to the system. Incremental encoders produce a series of pulses directly proportional to movement of its shaft.
1. Features of CNC bending machine encoder RTC66S15 Spindle Encoder IP65
* Good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.

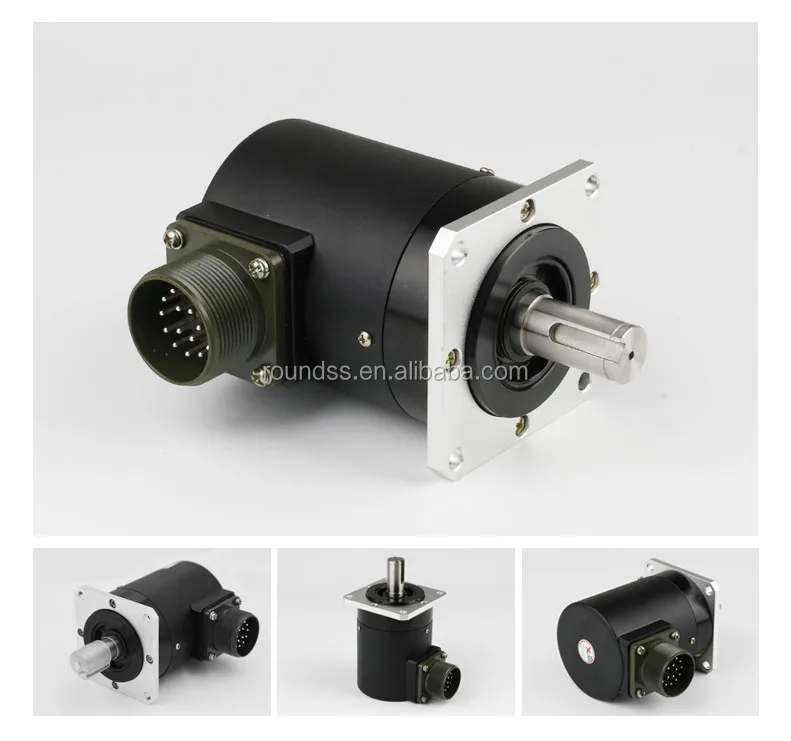

2. Images of CNC bending machine encoder RTC66S15 Spindle Encoder IP65
3. Specifications of CNC bending machine encoder RTC66S15 Spindle Encoder IP6
| SPECIFICATION | MECHANICAL SPECIFICATIONS | |
| External Diameter | 66mm | |
| Shaft Diameter | 15mm | |
| Slew Speed | 6000r/min | |
| Shaft Load | ≤20N | |
| Operating Temperature | -20 °C(-40 °C)- +85°C | |
| Protection Class | IP64 | |
| Termination | Side Entry Cable/ Rear Entry Cable/17 pins connectors/19 pins connector | |
| ELECTRICAL SPECIFICATIONS | ||
| Supply Voltage | DC5V/8V-26V/12V-30V/12V | |
| Output Model | Voltage/Push-pull/Open Collector/Line Driver | |
| Frequency Response | 0-100kHz | |
| Current Requirement | ≤60mA | |
| Output Pulse No. | 10-6000 | |
| Index Length | 1T | |
| Output Phase | A,B,Z/A,-A,B,-B,Z,-Z | |

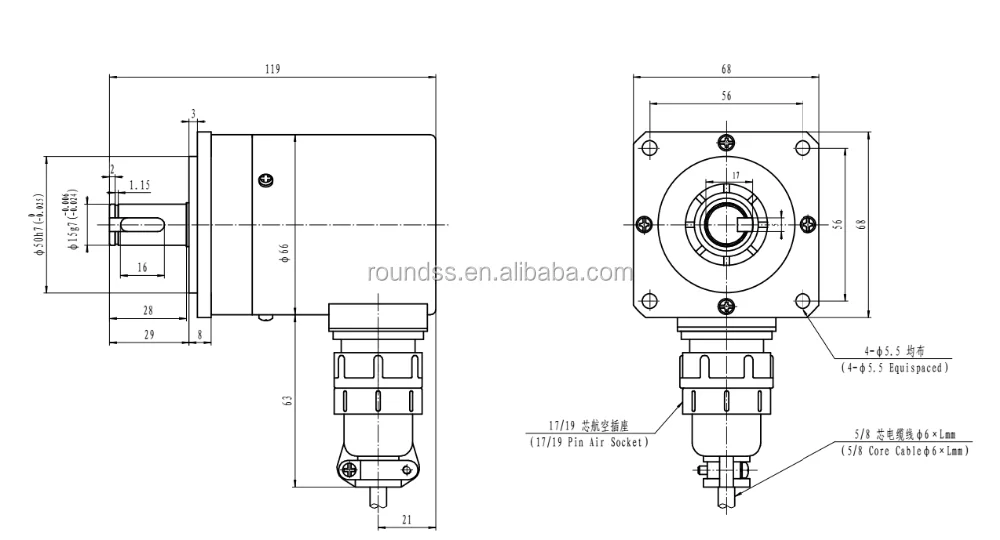

4. Mechanical Drawings of CNC bending machine encoder RTC66S15 Spindle Encoder IP65
5. Pre-sales Service of CNC bending machine encoder RTC66S15 Spindle Encoder IP65
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
