Packaging & Delivery
| Packaging Details: | optical encoder: Carton |
|---|---|
| Delivery Detail: | Delivery within a week after receipt of payment |
18 MONTHS: Free Replacement of Defective Products within 18 Months

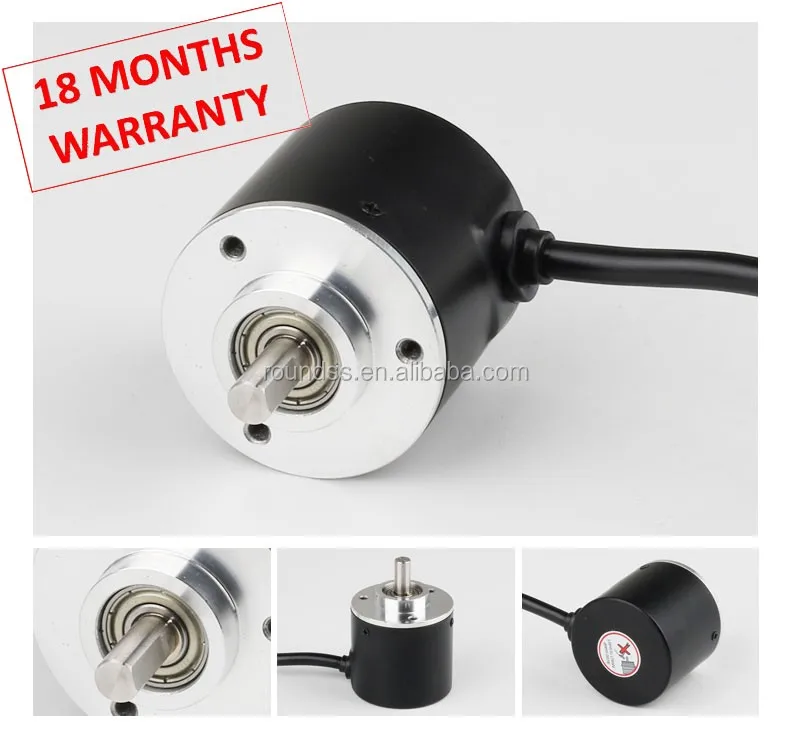

Principle of RCC40S 6mm shaft incremental 100 ppr rotary encoder optical
An incremental rotary encoder provides cyclical outputs (only) when the encoder is rotated. The incremental rotary encoder is the most widely used of all rotary encoders due to its low cost and ability to provide signals that can be easily interpreted to provide motion related information such as position and velocity.
Optical encoders use light (optics) to identify unique positions for the encoder. Optical encoder engines can be amazingly precise, with some designs hitting 4 million counts per revolution. This makes an optical encoder a desirable choice where resolution matters, from office equipment like computer mice and copiers to medical equipment. With phased-array technology, an optical encoder is increasingly able to perform in much tougher environments which require a combination of durability and resolution, like crane operations and automated vehicle guidance.
Features and Applications of RCC40S 6mm shaft incremental 100 ppr rotary encoder optical
The most common class of encoders is the industrial encoder. An industrial encoder can take punishing operating environments almost as well as heavy duty encoders – rough factories with contamination from dust, particulates, and moisture, in addition to moderate shock and temperature. An industrial encoder offers excellent speed and positioning performance. The class of industrial encoders is versatile.
Product Description of RCC40S 6mm shaft incremental 100 ppr rotary encoder optical
1.Encoder R80T is widely used in auto control and auto measurement, .
2.Compact design, easy installation.
3.Light weight, shock resistance.
4.Multiple shaft diameters are optional.
5.Suit more application enviroments.
6. Low price and high quality
Technical Parameter of RCC40S 6mm shaft incremental 100 ppr rotary encoder optical
|
MECHANICAL SPECIFICATIONS | |
|
External Diameter |
40mm |
|
Shaft Diameter |
6/8mm |
|
Slew Speed |
4000r/min |
|
Shaft Load |
≤10N |
|
Operating Temperature |
-20 °C(-40 °C)- +85°C |
|
Protection Class |
IP50 |
|
Termination |
G |
|
ELECTRICAL SPECIFICATIONS | |
|
Supply Voltage |
DC5V/12V-24V |
|
Output Model |
E/C |
|
Frequency Response |
0-100kHz |
|
Current Requirement |
≤60mA |
|
Output Pulse No. |
200,360,400,600 |
|
Output Phase |
A,B |
|
TERMINATION | |||
|
G Side Entry Cable |
E Rear Entry Cable |
C Side Entry Plug |
R Rear Entry Plug |
|
OUTPUT MODEL | |||
|
E Voltage |
F Complementary |
C Open Collector |
L Line driver or according to user requirement |
Mechanical Dimensions of RCC40S 6mm shaft incremental 100 ppr rotary encoder optical
Pre-sales Service of RCC40S 6mm shaft incremental 100 ppr rotary encoder optical
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
