Packaging & Delivery
| Packaging Details: | Manual pulse generator Packaging: Carton |
|---|---|
| Delivery Detail: | Shipped in 7 days after payment |
More details,let's skype:zhangpaula312
Product Description

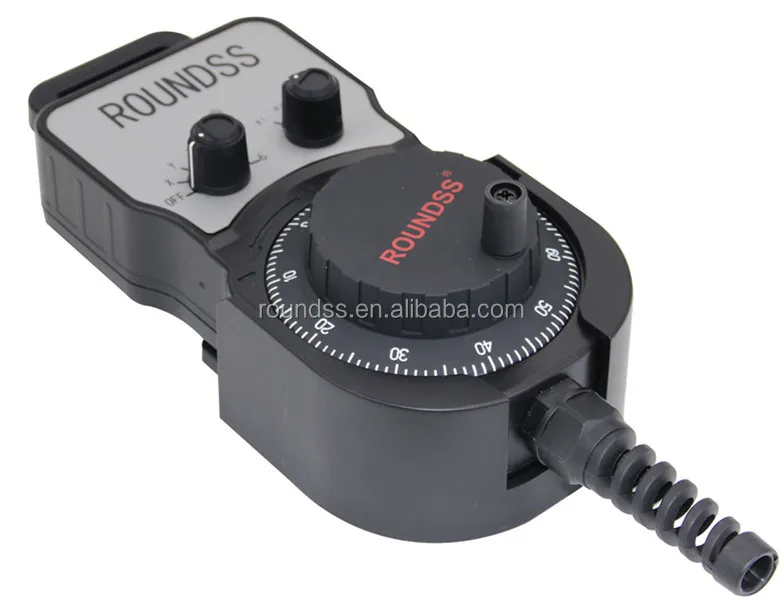

Wheel Rotary Encoder Handwheel Encoder Handy Pendant
More details, let's Skype: zhangpaula312
Manual Pulse Generator Features & Applications
* Optional axis X Y Z 4, Magnification X1 X10 X100
* Handheld remote control part: resolution 25P/R and 100P/R are optional
* Sealed design
* Spring cable: 3m and 5m are optional
* Start button Emergency stop switch can be selected
* Supply voltage DC5-15V/DC10-30V
* Multiple installation ways: choose flip chart for installation or fringe magnetic stickers fixed on the machine
* Can be equipped with a variety of numerical control system, for example, FANUC, Siemens, etc
Manual Pulse Generator Specifications
|
Electrical/Mechanical Specifications | |||
|
Pulse No. |
25 P/R 100 P/R | ||
|
Output Circuit |
Voltage | Line Driver | |
|
Supply Voltage |
DC5V-15V/10-30V | DC5-0.25V | |
|
Current Requirement |
≤60mA | ≤180mA | |
|
Output Voltage |
High |
≥Vcc-1V | ≥2.5V |
|
Low |
≤0.5V | ≤0.5V | |
|
Rising/Falling Time |
≤1 us | ≤0.1 us | |
|
Frequency Response |
0-50kHz | ||
|
Isolation Resistance |
≥20Ω | ||
|
Normal Speed |
≤200r/min | ||
|
Max Speed |
600r/min | ||
|
Operating Temperature |
-10~+60℃ | ||
|
Storage Temperature |
-20~+70℃ | ||
|
Dimension |
190mm*85mm*66mm | ||
|
Optional axis |
Standard X Y Z 4 (2/3/4/5/6 axes optional) | ||
|
Magnification |
X1 X10 X100 | ||
|
Output Phase |
A,B | ||
|
Cable Length |
Standard 3M (3M/5M optional) | ||

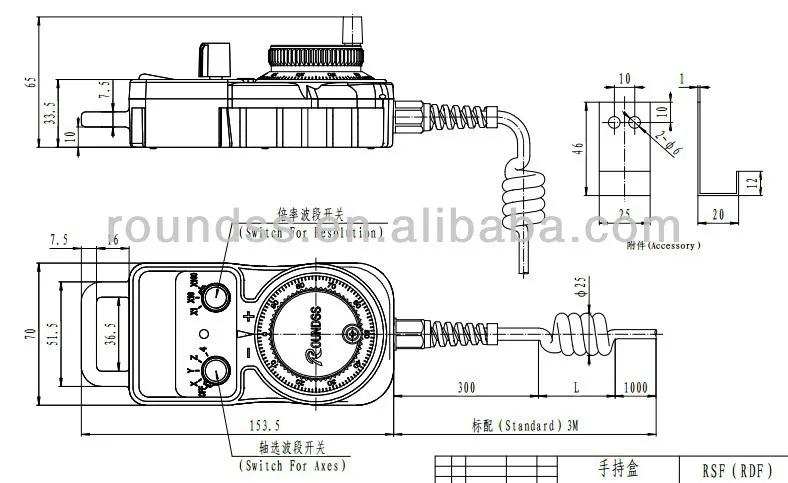

Manual Pulse Generator Dimension
Manual Pulse Generator Order Information
Packaging & Shipping
Hand Encoder mpg Manual Pulse Generator
Manual Pulse Generator Packaging: Carton
Company Information
Roundss is one of the leading producers of encoders and encoder solutions for the industrial applications. Founded in 2006, the company with headquarter in Changchun, the optical industry base of China. With 4 subsidiaries in Guangzhou, Wuxi, Beijing, Xi’an as well as more than 30 representative offices around China and 5 distributors abroad, Roundss maintains a presence all around the world.

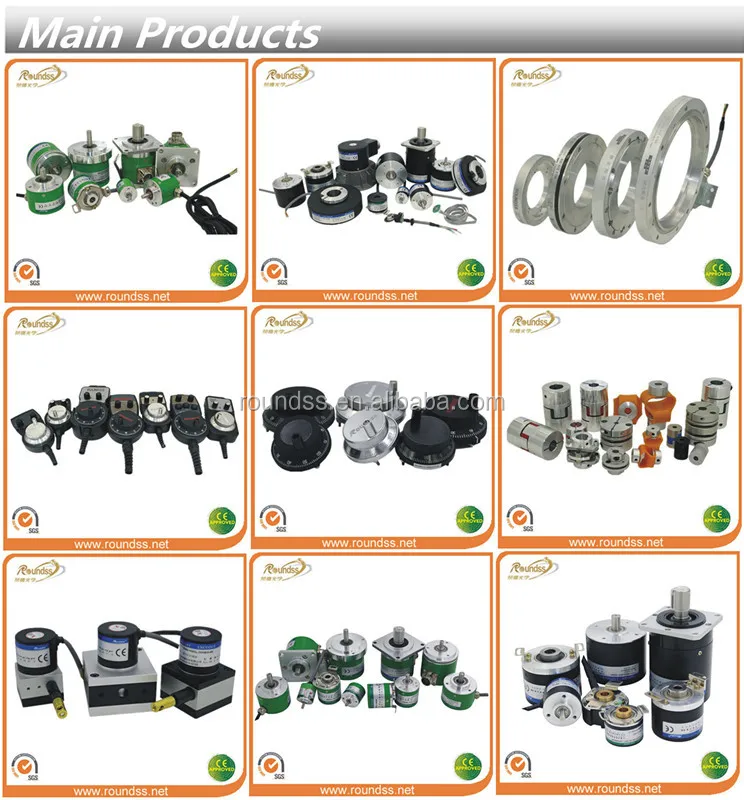

Roundss is mainly specialized in rotary encoders, flexible couplings and draw wire displacement sensors, including absolute encoders, incremental encoders, servo motor encoders, magnetic ring encoders, elevator encoders, textile encoders and other encoders applied to industrial automation applications, which are with international interfaces.

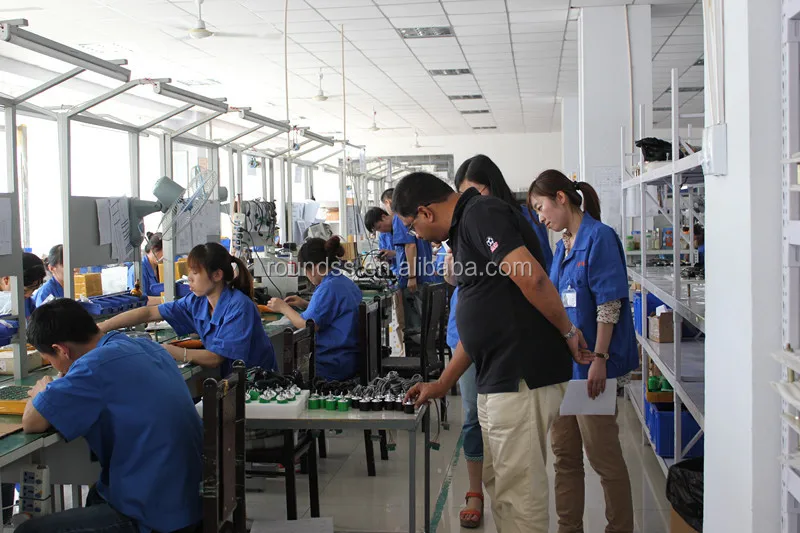

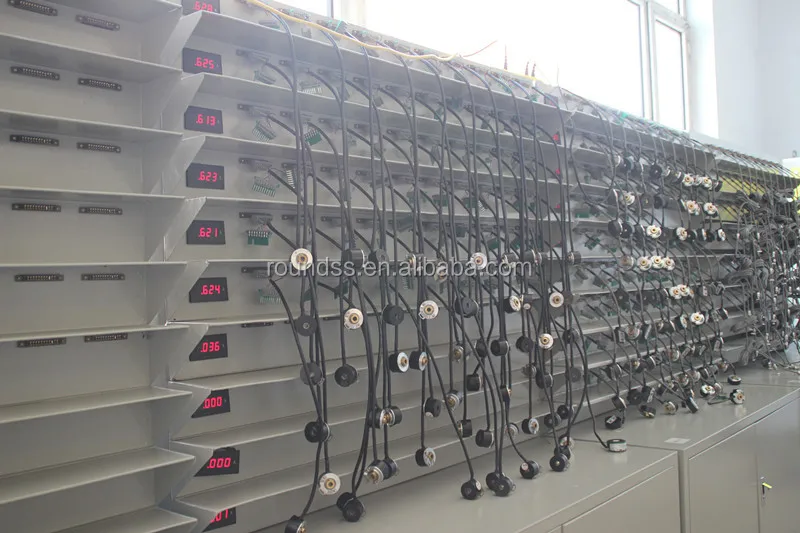

We have more than 150 employees including 30 technicians. In 2013, the annual encoder output was 300k pcs. In 2014, Roundss introduced advanced automation assembling lines technology, which is a pioneer in China encoder industry. And the annual output is expected to reach 500k pcs.
We are looking for distributors or agents all over the world. Hope to be your good partner in business.
