Roundss absolute angle sensor bammer alternative multiturn 21 bits absolute encoder

Quick Details

Place of Origin: Jilin, China (Mainland)

Brand Name: Roundss

Model Number: RDE94T30

Usage: Speed Sensor

Theory: Optical Sensor

Output: Analog Sensor

External Diameter: 94mm

Shaft Diameter: 30mm

Max Speed: 2000r/min

Connection: Radial Cable

Protection Class: IP65

Supply Voltage: DC5V±0.05%/DC9-30V

Output Code: Binary Code/Gray Code

Resolution in Bits: 8-18

Interface:RS485/RS422/RS232/SSI/CAN/Parallel

Measuring Range: 0°-360°

Packaging & Delivery

Packaging Details:	Carton
Delivery Detail:	Shipped in 7 days after payment

Product Description

ROTARY ABSOLUTE ANGLE ENCODER

Speed sensor rotary encoder Omron alternative dc motor encoder for radar

1. Features of Speed sensor rotary encoder Omron alternative dc motor encoder for radar

l Absolute Encoder External Diameter:94mm.

l Absolute Encoder Resolution:10-21 bits.

l Multiple/ Single-turn Output interfaces absolute encoder.

l IP64.Be able to operate in harsh environment.

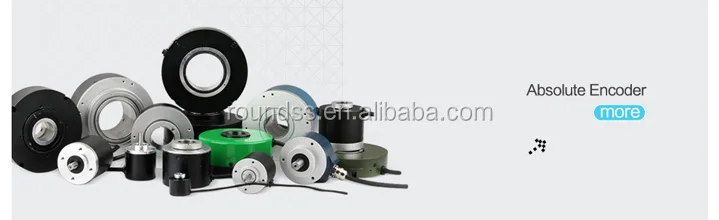

2. Images of Speed sensor rotary encoder Omron alternative dc motor encoder for rada

3. Specifications of Speed sensor rotary encoder Omron alternative dc motor encoder for radar

SPECIFICATION	External Diameter	94mm
	Shaft Diameter	30mm
	Max Speed	1000r/min
	Shaft Load	≤20N
	Operating Temperature	-20 °C-+65°C/-40°C- +65°C
	Protection Class	IP64
	Termination	Side Entry Cable/ Rear Entry Cable
	Shock	20g
	Vibration Resistance	2.5g
	Radial cable	1m standard
	Supply Voltage	DC5V/DC9-30V
	Output Code	Binary Code/Gray Code
	Interface	RS485/RS422/RS232/SSI/CAN/Parallel/Biss
	Refresh Rate	50-1000kHz
	Baud Rate	4800b/s-115200b/s
	Current Requirement	≤180mA
	Resolution in Bits	10-21
	Protocol	Timing TXD/Bus TXD
	Measuring Range	0°-360°

4. Mechanical Drawings of Speed sensor rotary encoder Omron alternative dc motor encoder for radar

5. Pre-sales Service of Speed sensor rotary encoder Omron alternative dc motor encoder for radar

1.The absolute encoder can be customized to meet your need.

2.The questions about the encoder will be answered within 24 hours.

3.We have the best after-sale service.
