Specifications
1.frequency measuring theory2.angular and linear speed,flow measurement
3.BCD code serial output
4.96*48*110
5.4-6 display
Product Description
6 Display ZS Tachometer / digital display Panel Meter
Position, Length or Angle Measurement
The meter with the Standard counter main board accepts the A & B quadrature signals from linear encoders and shaft encoders to provide a highly accurate, scaled display of position, length, or angle in engineering units, such as ft, cm or degrees. The A & B quadrature signals are 90° out of phase, and their phase relationship determines whether up counts (+) or down counts (-) are counted. The meter totalizes the counts and then scales the total in software for display and control. A zero index signal, or Z signal, may be added as a third input to the A & B signals.
Our digital display meters are one of our highly demanded products and are used in various industrial applications. These are developed using advanced electronic technology and they have personality designs. Other salient features of the product include:
- Speed of count response is very effective and it has many powerful functions
- Solid, durable and attractive cover which is not easily scratch able
- Strong anti-interference of power
- Durable panel, which is simple and conversion
A tachometer (revolution-counter, Tach, rev-counter, RPM gauge) is an instrument measuring the rotation speed of a shaft or disk, as in a motor or other machine. The device usually displays the revolutions per minute (RPM) on a calibrated analogue dial, but digital displays are increasingly common.
Parameters
| Supply Voltage | Acc220±10% 50/60Hz |
| Power Consumption | 5VA |
| Insulation Resistance | DC500V 10MΩ |
| withstands voltage | AC1500V 1Minite |
| Storage Temperature | -10-+55°C |
| Working Temperature | 0-+55°C(Non condensation) |
| Working Humidity | RH30-80%(Non condensation) |
| Weight | Appr. 300g |
| Dimension | 96*48*110 |
| Power Supply | DC12V±10% 125mA; 5V±5% 200mA |
| Input Signal | H:7-28V L:-3-1V |
| Frequency Response | 50kHz |
| Input signal | Voltage/Complementary/Current/Line driver(26LS31) |
| Display | 4-6 Digits Red(green)LED |
| Display Range | 0-+999999 |
| Input Resistance | 8kΩ |
Mechanical dimensions

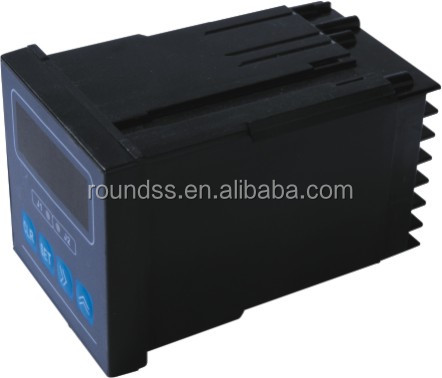

The Picture of Digital Display Meter
Pre-sales Service
1.The digital panel meter can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
