Packaging & Delivery
| Packaging Details: | Magnetic Ring Encoder Packaging: Carton |
|---|
Features
1. Advanced magnetoelectric sensing technology
2. Less error Magnetic Ring Encoder
3. Anti-pollution Design magnetic ring encoder
4. Ideal for CNC Machine Tools magnetic ring encoder
5. Innovative Design magnetic ring encoder
6. Easy installation magnetic ring encoder

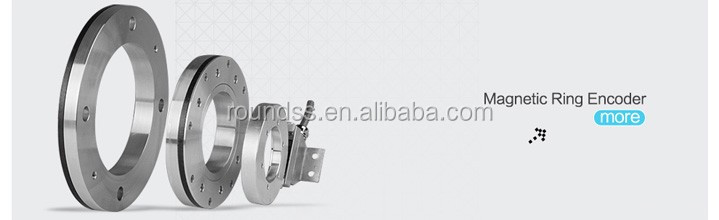

High rotational manetic encoder
| SPECIFICATION | Slew Speed | 100000r/min |
| Starting Torque | 3×10-2N·m | |
| Moment of Inertia | 6×10-5kgm | |
| Allowable Input Angle Acceleration | 10000rad/S2 | |
| Output Model | Line Driver(26LS31)/7272B | |
| Supply Voltage | 5±0.25V/5V-26V | |
| Current Requirement | ≤200mA | |
| Output Voltage | Vh≥2.5V,Vt≤0.5V | |
| Frequency Response | 0-300kHz | |
| Pulse No. | 1024BM,2048BM,3600BM,5000BM | |
| Diameter | Φ82,Φ115,Φ122,Φ160,Φ163,Φ203 | |
| Accessories | A,B,C,D,E,F,G,H | |
| Reading Head | T,I,P,L |
MECHANICAL DIMENSIONS
Pre-sales Service
1.The CNC spindle encoder can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
