HAND ENCODER MPG！
Changchun Rongde Optics Co.,Ltd. Release time：2015-03-05 Browse：1170
Product Description

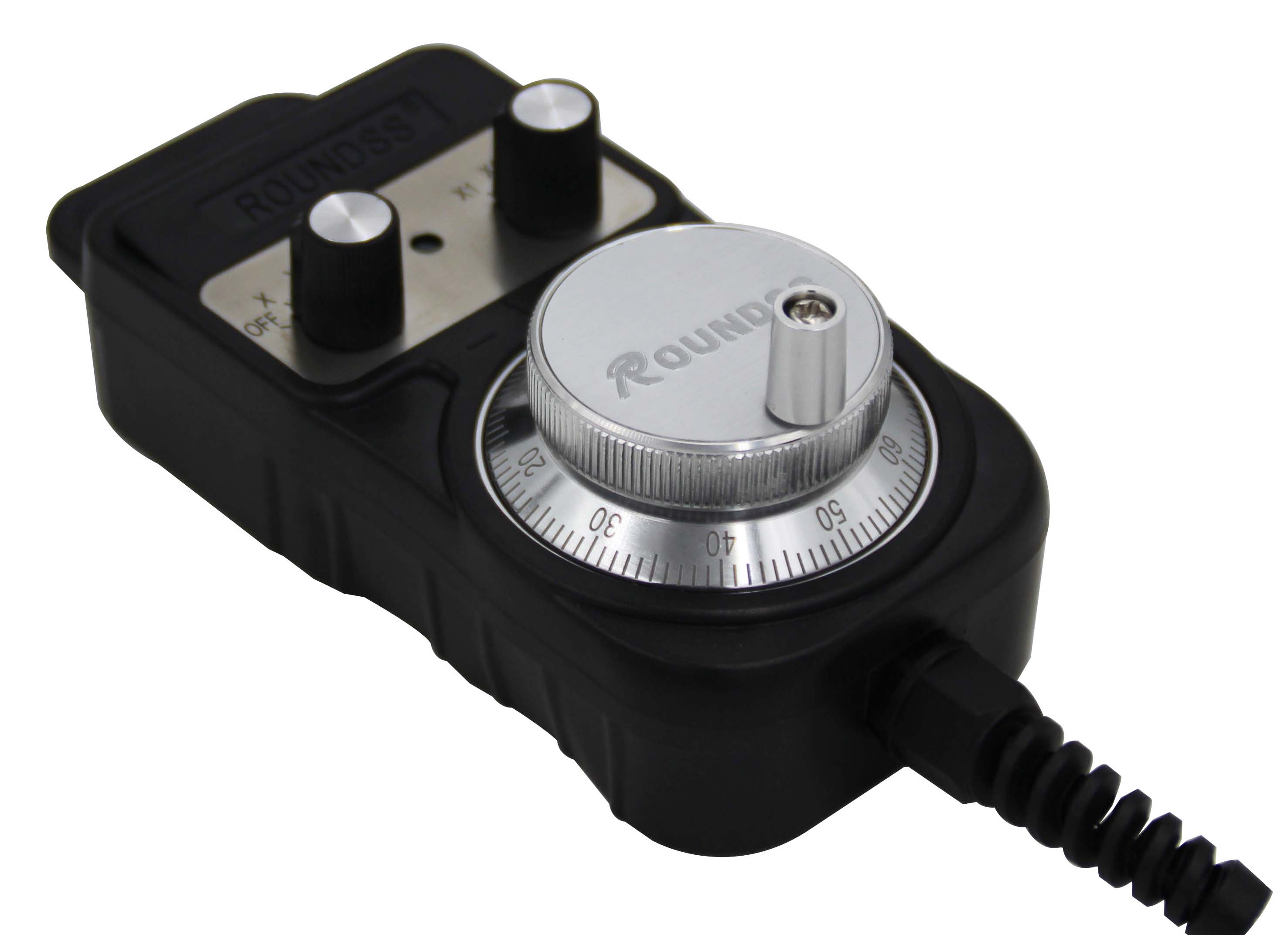

HAND ENCODER MPG
Roundss has near 10 years experience in the design, manufacturing, sales and marketing of precision optical and magnetic encoders. Encoders and encoder systems are our only product. Since we specialize in the manufacturing of high quality precision encoders, we offer the best solutions to your most demanding requirements.
Features
1. All-plastic Shell hand encoder mpg
2. High Dielectric Strength hand encoder mpg
3. Anti-oil Seal Design CNC hand encoder mpg
4. Hand Pulse Sensor Ideal for hand encoder mpg
5. Innovative Design hand encoder mpg
6. Easy to Move hand encoder mpg
Low Cost Hand Encoder Manual Pulse Generator MPG
| SPECIFICATION | Output Pulse | 100P/R | 25P/R | |
| Output Model | Voltage | Line Driver | ||
| Supply Voltage | DC5V-15V/10-30V | DC5V-0.25V | ||
| Current Requirement | ≤60mA | ≤150mA | ||
| Signal Level | High | ≥Vcc-1V | ≥2.5V | |
| Low | ≤0.5V | ≤0.5V | ||
| Rise/Fall time | ≤1us | ≤0.1us | ||
| Output Phase | A,B,-A,-B | |||
| Frequency Response | ≤50kHz | |||
| Risolation resistance | ≥20MΩ | |||
| Normal rotational speed | ≤200r/min | |||
| Slew speed | 600r/min | |||
| Operating temperature | -10-+60°C | |||
| Storage Temperature | -20-+70°C | |||
| Dimension | 130mm×70mm × 33.5mm | |||
| Switch for resolution | ×1,×10,×100 | |||
| Switch for Axes | O/X/Y/Z/2/3/4/6 | |||
