UVW SERVO MOTOR ENCODER！
Changchun Rongde Optics Co.,Ltd. Release time：2015-03-05 Browse：2092
UVW SERVO MOTOR ENCODER
Roundss has near 10 years experience in the design, manufacturing, sales and marketing of precision optical and magnetic encoders. Encoders and encoder systems are our only product. Since we specialize in the manufacturing of high quality precision encoders, we offer the best solutions to your most demanding requirements.
Feature:
1.DVC48T is specially designed for dc uvw motor control.
2.The design of shaft sleeve saves the mounting space and cost.
3.The special tapering shaft is easy for installation
4.The level of Hall signal can reach level 8.
5.Resolution is up to 6000 ppr UVW Motor Encoder .
6.UVW servo motor encoder.

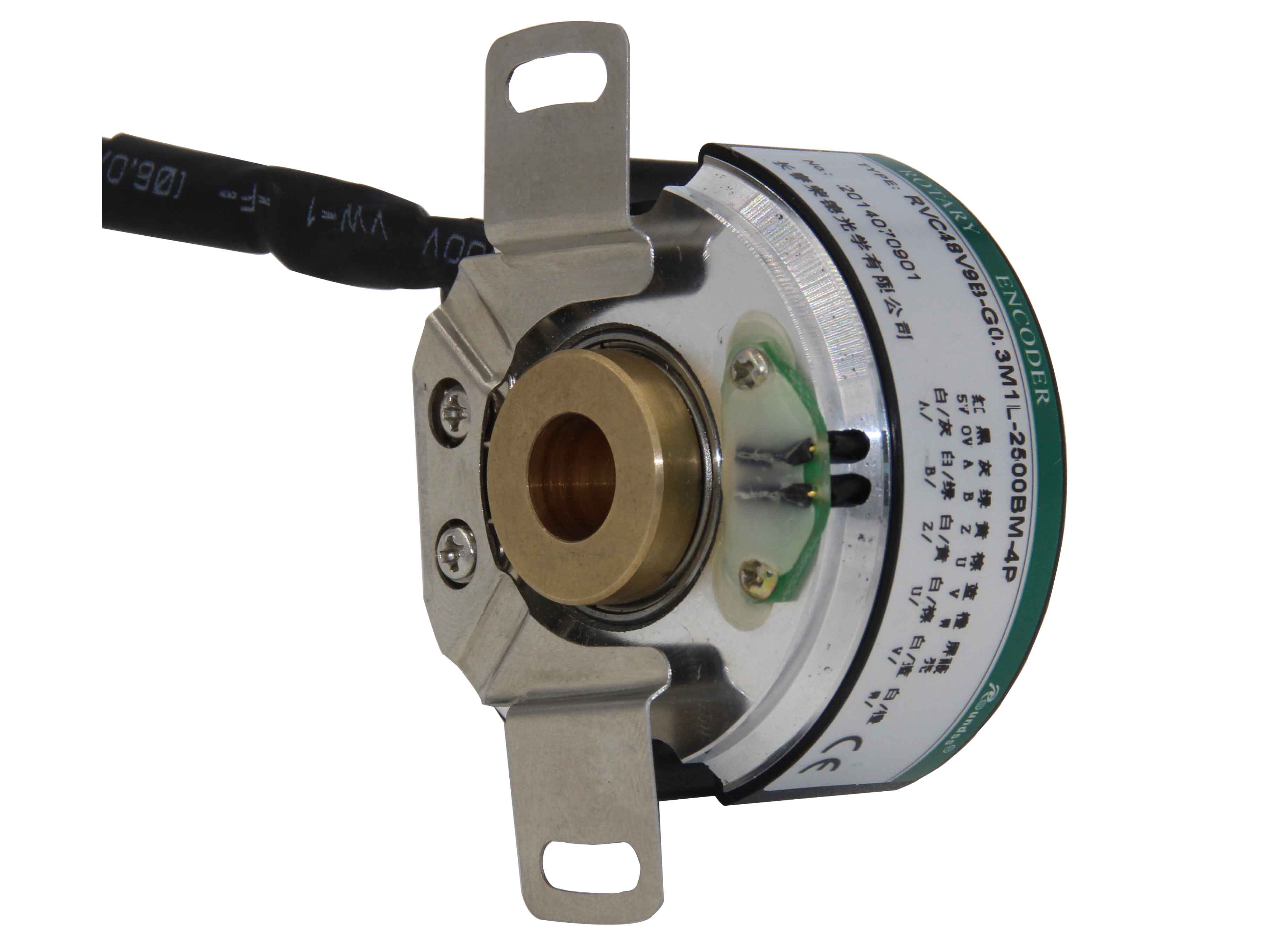

UVW Motor Encoder Ultra-thin Servo Motor Encoder
| SPECIFICATION | MECHANICAL SPECIFICATIONS | |
| External Diameter | 48mm | |
| Shaft Diameter | 8(straight hole)/9mm(1:10taper hole) | |
| Slew Speed | 8000r/min | |
| Shaft Load | ≤10N | |
| Operating Temperature | -20 °C(-40 °C)- +85°C | |
| Protection Class | IP50 | |
| Termination | Side Entry Cable/Rear Entry Plug | |
| Servo Motor Encoder | ||
| ELECTRICAL SPECIFICATIONS | ||
| Supply Voltage | DC5V | |
| Output Model | Line driver or according to user requirement | |
| Output Pulse No. | 1000,1024,2000,2500,3000,5000,6000 | |
| Frequency Response | 0-200kHz,300kHz | |
| Index Length | 1T | |
| Current Requirement | ≤60mA | |
| Output Phase | A,B,Z,-A,-B,-Z,U,-U,V,-V,W,-W | |
| Motor Pole Number | 2P,3P,4P,5P | |
Mechanical Drawing UVW Motor Encoder Ultra-thin Servo Motor Encoder
Pre-sales Service
1.The uvw motor encoder can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
